BW Industrial Gland Kit (Prysmian)
BW Industrial Gland Kit (Prysmian)

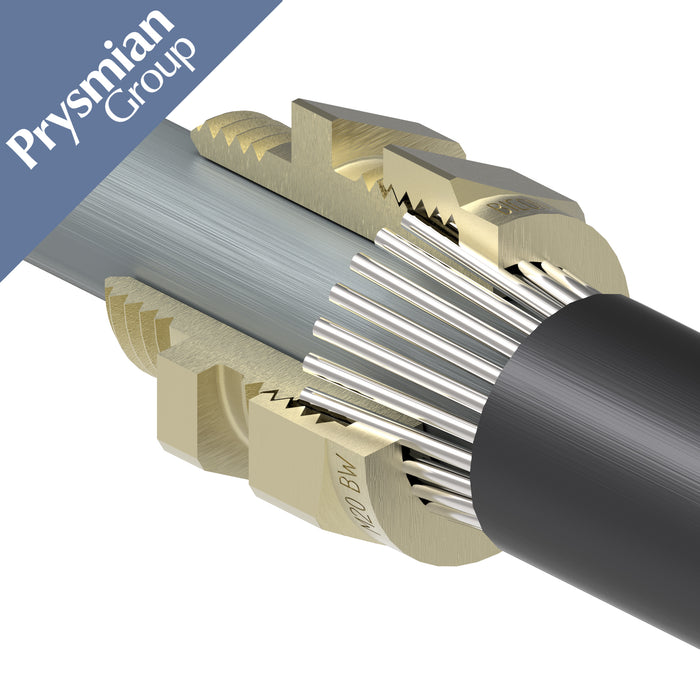

The Prysmian BW Industrial Gland Kit is a leading brand of BW gland kit for terminating Steel Wire Armoured cable (SWA) in an exclusively indoor situation. Made from high grade brass, this complete brass cable gland kit gives unbeatable mechanical cable retention and electrical continuity across a wide range of sizes and types. Supplied with all the key components—earth tag, locknut and PVC shrouds—this industrial cable gland kit is approved to British standards and held in stock for worldwide dispatch at a competitive VAT-inclusive price. Order now and benefit from ongoing product development and get the best.
Key Features & Benefits
- Industrial Cable Glands: Top of the range brass cable gland for industrial applications.
- Mechanical Cable Retention: Two-part armour cable clamp for robust strain relief for armoured cables.
- Electrical Continuity: Kit includes earth tag and brass locknut for consistent earthing in electrical systems.
- Armour Wire Termination: Designed for quick and easy termination of steel wire armour.
- Wide Size Range: Available in metric mm sizes 20 mm to 75 mm to suit various cable diameters.
- Approved Standards: Meets BS 6121-1:2005 and other industry standards.
- Complete Kit: Supplied in pack quantities (×2 per kit up to 25 mm) with gland, earth tag, locknut, PVC shroud.
- Stock & Supply: Cable Glands UK hold stock for immediate global dispatch.
- Product Development: Ongoing development to meet evolving industrial applications.
Kit Contents
- BW brass cable gland
- Brass earth tag
- Brass locknut
- PVC shrouds
- Supplied in pack quantities: ×2 per kit for 20 mm & 25 mm sizes; ×1 per kit for larger sizes. Price excludes VAT.
Instructions
- For indoor use in dry enclosures. Separate all components and, if needed, fit the shroud over the outer sheath of the cable.
- Prepare the cable by stripping the outer sheath and the armour to suit the installation.
- Remove an additional 18 mm (max) of outer sheath to expose the armour.
- Secure the entry part of the gland to the equipment.
- Pass the cable through the entry part of the gland and evenly space the armour around the cone.
- While maintaining contact between the armour and the cone, tighten the top nut by hand, then torque to the manufacturer’s specification.
Suitable for junction boxes and electrical panels.
Material & Colour
Body: Brass cable gland
Earth Tag & Locknut: Brass
Shrouds: PVC
Finish: Natural brass
Technical Data
| Parameter | Specification |
|---|---|
| Thread Type | Metric (M20–M63) CW Thread |
| Cable Compatibility | SWA cable, rubber sheathed cables |
| Ingress Protection | IP68 |
| Operating Temperature | –40 °C to +90 °C |
| Armour Clamp Type | Armour Max 2-part basket clamp |
| Pack Quantity | 1 kit (locknut sold separately) |
Applications & Suitability
- Industrial and commercial enclosures requiring robust cable gland solutions
- Armoured cable terminations in electrical continuity critical systems
- Outdoor type installations exposed to harsh climatic conditions
- Rubber and PVC sheathed cable sealing in junction boxes and panels
- Any application where simple inspection and guaranteed strength are essential
Order & Shipping
In-stock CW cable glands ready for next day delivery. Order your Prysmian CW Gland kit today and benefit from global supply, competitive pricing, and VAT-inclusive checkout. For bulk orders and technical enquiries, contact our UK sales team.
Technical Data
| Parameter | Specification |
|---|---|
| Type | BW Industrial |
| Standards | BS 6121-1:2005 |
| Gland Material | Brass cable gland |
| Cable Type | Steel Wire Armour (SWA cable) |
| Armour Clamping | 2-part armour basket clamp |
| Service Temperature | –20 °C to +90 °C |
| Pack Quantity | 1 unit (locknut sold separately) |
Applications & Suitability
- Industrial & commercial electrical systems
- Junction boxes and enclosures requiring secure cable entry
- Termination of armoured cables in machinery and control panels
- Any application needing reliable cable retention and earthing continuity
Order & Shipping
All products are stocked in the UK and supplied worldwide. Order the BW Industrial Gland Kit today to lock in our best price and VAT-inclusive checkout. For volume orders or technical contact, please get in touch with our sales team.
Technical Data
| Type | BW |
|---|---|
| Design Specification | BS 6121-1:2005 |
| Gland Material | Brass |
| Ingress Protection | Indoor Only |
| Finish | Brass |
| Cable Type | Steel Wire Armour |
| Armour Clamping | 2 Part |
| Service Temp. Range | -20°C to +90°C |
Size Chart
| Gland Size | 20S | 20 | 25 | 32 | 40 | 50 | 63 | 75 |
|---|---|---|---|---|---|---|---|---|
| Prysmian Part No. | KA410-52 | KA410-53 | KA410-55 | KA410-56 | KA410-57 | KA410-59 | KA410-61 | KA410-63 |
| No. per Pack | x2 | x2 | x2 | x1 | x1 | x1 | x1 | x1 |
| Under Armour ⌀ - A (mm) | 11.6 |
13.9 | 19.9 | 26.2 | 32.1 |
44.0 | 55.9 | 67.9 |
| Entry Thread - D (mm) | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M32 x 1.5 | M40 x 1.5 | M50 x 1.5 | M63 x 1.5 | M75 x 1.5 |
| Entry Thread - E (mm) | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Armour ⌀ (mm) | 0.9 | 0.15 - 1.25 | 1.25/1.6 | 1.6/2.0 | 1.6/2.0 | 2.0/2.5 | 2.5 | 2.5 |
| Hexagon Across Flats - G (mm) | 22.0 | 27.0 | 32.9 | 42.4 | 50.0 | 70.1 | 80.0 | 98.8 |
| Hexagon Across Corners - H (mm) | 24.9 | 30.5 | 36.8 |
47.8 |
57.0 | 77.2 | 87.4 |
109.2 |
