HoleMole 1/4in-20 Coupling Nut – Threaded Rod Extension

HoleMole 1/4in-20 Coupling Nut – Threaded Rod Extension

by HoleMole
£1.20 - £1.20
£1.20
£1.20 - £1.20
£1.20
Description

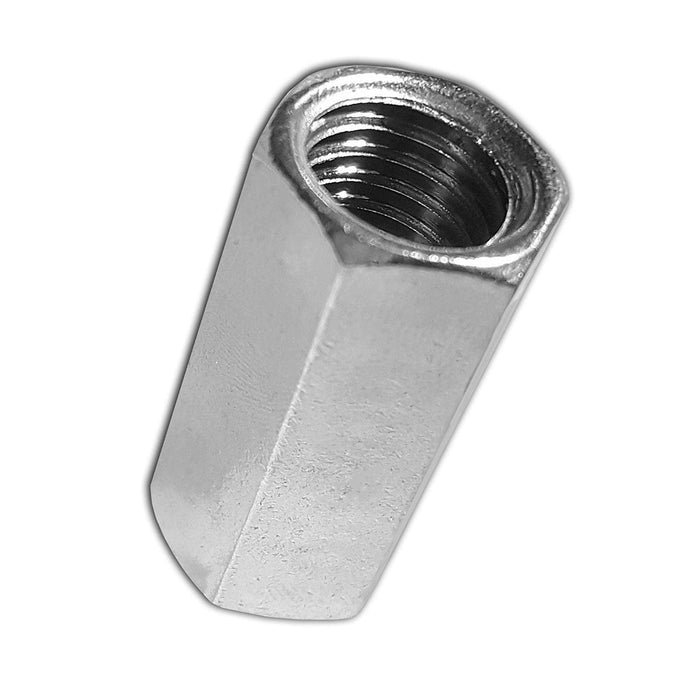

HoleMole 1/4in-20 Coupling Nut – Join Threaded Mole Rods

  • Creates extended rod assemblies: Joins two standard HoleMole threaded rods when additional installation length is required.
  • Matching 1/4in-20 thread: Designed for the thread used by compatible HoleMole all-thread rods.
  • Compact genuine accessory: Adds extension capability without replacing the complete HoleMole application system.

The HoleMole 1/4in-20 Coupling Nut is the matching connector used to join standard threaded Mole rods. By threading one rod into each end of the nut, installers can create a longer assembly for concrete openings where a single rod does not provide the working length required to connect the Mole to the stand or Wall Applicator.

An extended rod can be useful for deeper cores, thicker slabs or application arrangements that leave more distance between the former and reusable support equipment. The coupling must be installed with clean, undamaged matching threads, with both rods adequately engaged and aligned before the Mole is lowered or pulled into position.

This component extends the positioning rod only; it does not change the permitted Mole size, repair specification or performance of the finished fill. The contractor remains responsible for checking the complete assembly, confirming sufficient exposed thread for the SpeedNut and ensuring that the chosen repair method is suitable for the opening.

The listing contains one coupling nut for 1/4in-20 HoleMole threaded rods. Rods, Moles, SpeedNut and application tools are sold separately. Cable Glands UK supplies HoleMole coupling nuts and related replacement parts nationwide as the exclusive UK distributor.

Important: Use only with matching 1/4in-20 HoleMole threaded rods. Both rods must be straight, adequately engaged and securely joined before the assembly is placed under load.
Key Features

Key Features of the HoleMole Coupling Nut

  • Rod-extension accessory: Connects two compatible HoleMole threaded rods to create additional working length.
  • 1/4in-20 internal thread: Matches the standard HoleMole rod connection specified for this component.
  • Double-ended connection: Accepts a threaded rod from each end of the coupling.
  • Useful for deeper openings: Supports installations where a single rod cannot reach the application tool with adequate exposed thread.
  • System compatibility: Works within the HoleMole former, rod, SpeedNut and applicator arrangement.
  • Small replacement part: Easy to add to a contractor kit as contingency stock for extended applications.
  • Individual supply: Available separately without purchasing additional Moles or application tools.
  • UK availability: Supplied by Cable Glands UK to contractors and project teams throughout the United Kingdom.
Technical Information

HoleMole 1/4in-20 Coupling Nut Technical Data

Product type Threaded rod coupling nut
Thread size 1/4in-20
Connection type Internally threaded at both ends
Primary function Joining standard HoleMole rods to create an extended assembly
Rod compatibility Matching 1/4in-20 HoleMole all-thread rods
Application systems Mole Stand and Wall Applicator installations where added rod length is required
Rods included No
SpeedNut included No
Unit supplied 1 × HoleMole 1/4in-20 coupling nut
Selection notice: The required engagement length and total rod extension depend on the opening and approved method. Inspect all threads and verify the coupled assembly before use.
How to Use

How to Join HoleMole Threaded Rods

  1. Confirm that both rods have matching 1/4in-20 threads and that an extended assembly is suitable for the installation method.
  2. Inspect the rod ends and coupling nut. Remove contamination and do not use components with damaged or distorted threads.
  3. Thread the first HoleMole rod into one end of the coupling nut until adequate engagement is achieved.
  4. Thread the second rod into the opposite end, keeping both rods aligned and securing the joint in accordance with the approved site method.
  5. Check the completed extension for straightness, secure engagement and sufficient remaining length for the Mole and SpeedNut connections.
  6. Install the extended rod assembly carefully and recheck the joint before placing the Mole under tension or adding repair material.
Important: Do not use a coupling to join mismatched threads or damaged rods. Never assume the connection is secure without checking both sides of the joint.
FAQs

What Is the HoleMole Coupling Nut Used For?

It joins two compatible 1/4in-20 HoleMole threaded rods to create a longer positioning assembly for deeper or thicker core-hole applications.

What thread size is the coupling nut?

It is designed for 1/4in-20 threaded HoleMole rods.

Are threaded rods included?

No. The listing contains one coupling nut only; 24in HoleMole all-thread rods are available separately.

Can it join two 24in rods?

It is made to connect compatible standard threaded Mole rods. Confirm that the resulting total length and joint are appropriate for the installation.

Does the coupling replace the SpeedNut?

No. The coupling joins rods together. A SpeedNut is still used to secure the rod assembly to the Mole Stand or Wall Applicator.

When would an extended rod be needed?

Examples include deeper cores, thicker slabs or arrangements where a standard rod does not leave enough exposed thread at the application tool.

Where can I buy HoleMole coupling nuts in the UK?

They are available from Cable Glands UK for nationwide delivery alongside threaded rods and other HoleMole accessories.
