HoleMole Contractor Starter Kit – 51–318mm Core Holes

Description

HoleMole Contractor Starter Kit – Complete Core-Hole Filling System

• Complete five-size coverage: Handles measured concrete core holes from approximately 51 to 318mm.
• Fifteen Moles supplied: three of every standard size let teams complete multiple openings before restocking.
• Organised contractor storage: The supplied bin keeps sizes and tools together between vehicles, stores and work areas.

The HoleMole Contractor Starter Kit gives construction and maintenance teams the core components needed to support and fill concrete openings from the working level above. It combines all five Mole sizes with the reusable stand, fast-action fixings and filling accessories required for floor-slab and compatible wall applications.

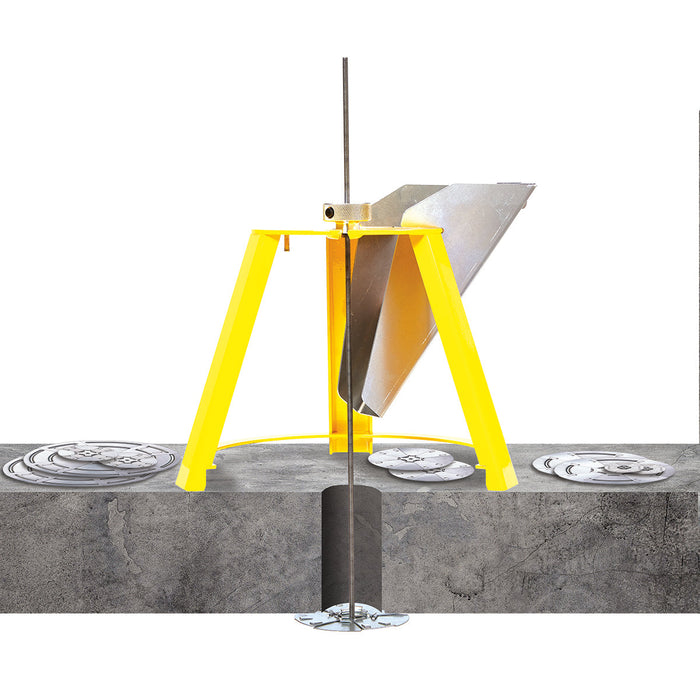

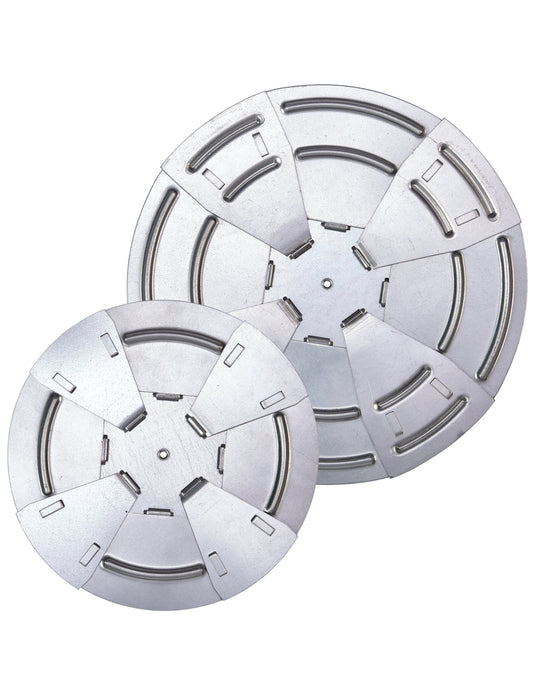

Traditional core-hole repairs often involve accessing the level below, fixing plywood beneath the opening and returning later to remove it. HoleMole changes that sequence. A collapsible galvanised-steel former is lowered through the core, pulled back against the underside and secured from above. The chosen repair material can then be placed through the formed Speed Chute while the Mole Stand holds the former in position.

With two Moles in every size, the kit covers openings from 2 to 12.5 inches, approximately 51 to 318mm. Ten threaded rods support the ten included Moles, while the reusable tools are organised in a durable contractor storage bin for transport between jobs. Cable Glands UK is a UK HoleMole distributor, offering nationwide supply and Manchester-based product support.

Important: Repair grout, mortar and other filling materials are not included. Select the repair product separately to meet the substrate, loading, fire, acoustic, waterproofing and project-specific requirements.

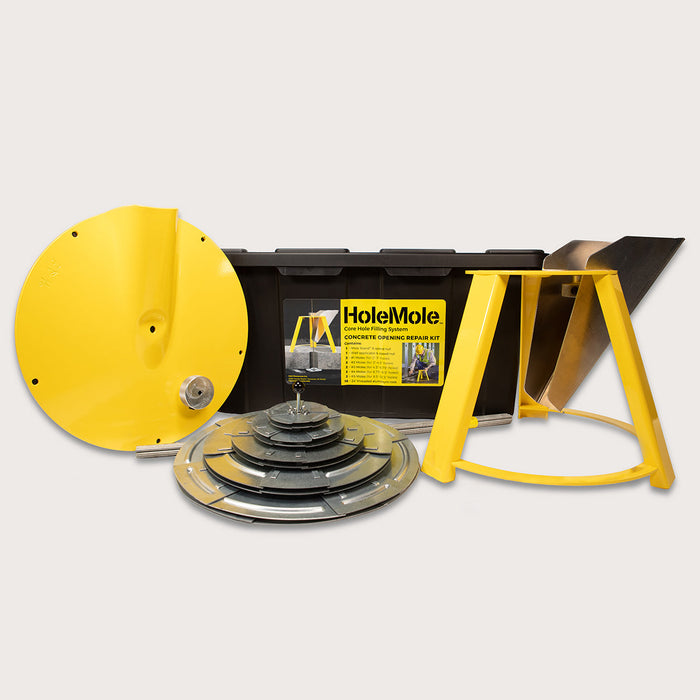

Kit Contents

What Is Included in the HoleMole Contractor Starter Kit?

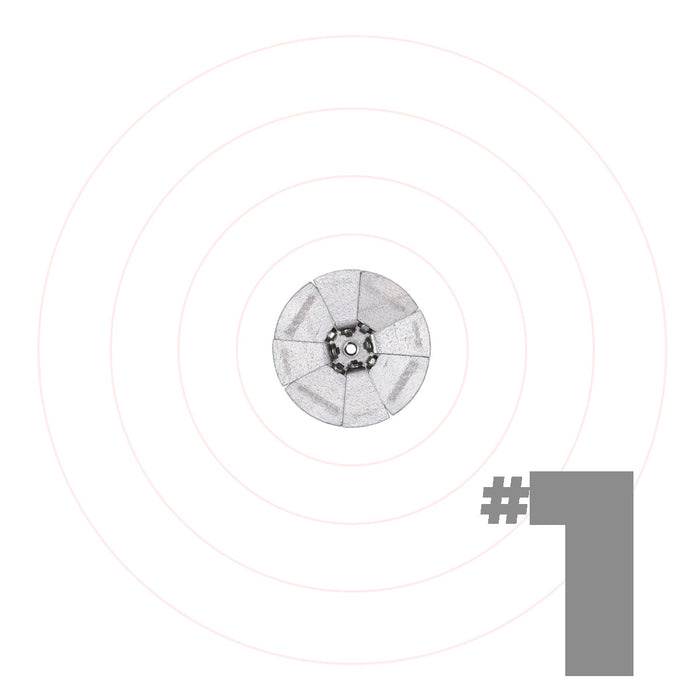

• 3 × HoleMole #1: For 2–3 inch openings, approximately 51–76mm.

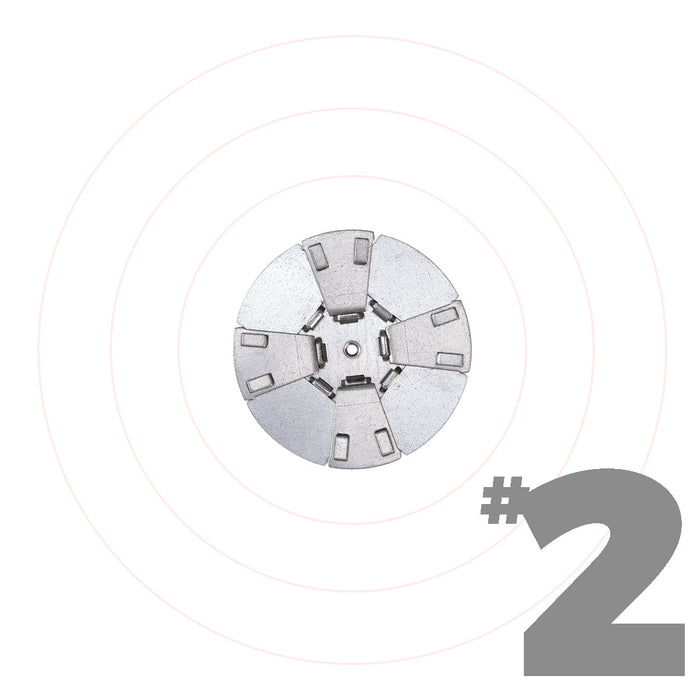

• 3 × HoleMole #2: For 3–4.5 inch openings, approximately 76–114mm.
• 3 × HoleMole #3: For 4.5–6.75 inch openings, approximately 114–171mm.
• 3 × HoleMole #4: For 6.75–9.5 inch openings, approximately 171–241mm.

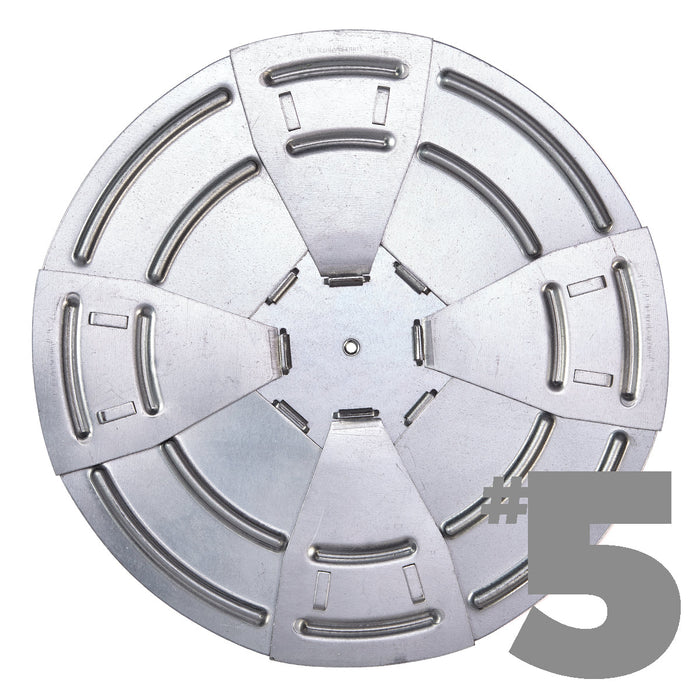

• 3 × HoleMole #5: For 9.5–12.5 inch openings, approximately 241–318mm.

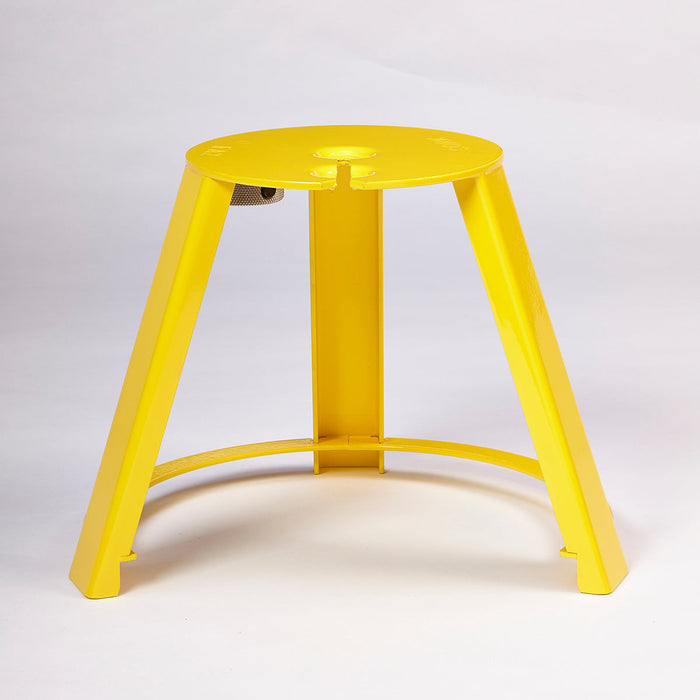

• 1 × Mole Stand with SpeedNut: Three-legged reusable support for horizontal slab openings.

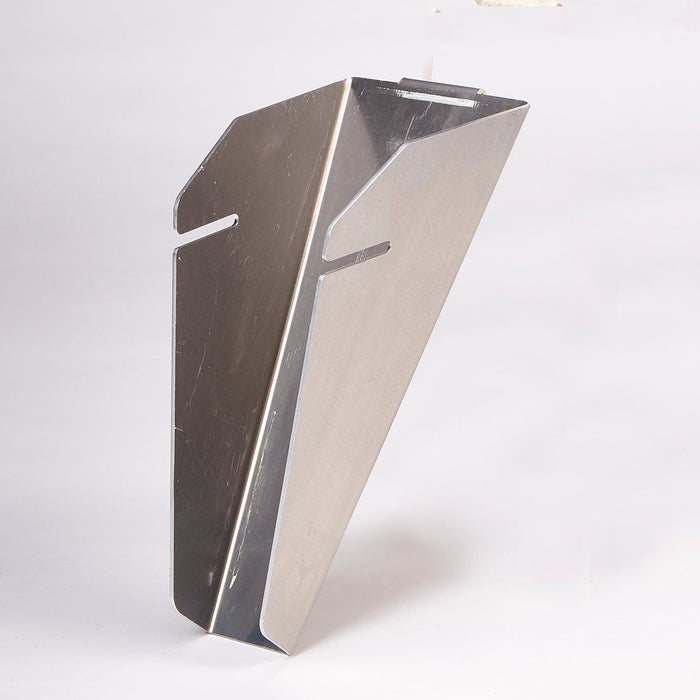

• 1 × Speed Chute: Formed aluminium chute that directs repair material into the opening.
• 15 × 24-inch threaded rods: One approximately 610mm aluminium rod for each included Mole.

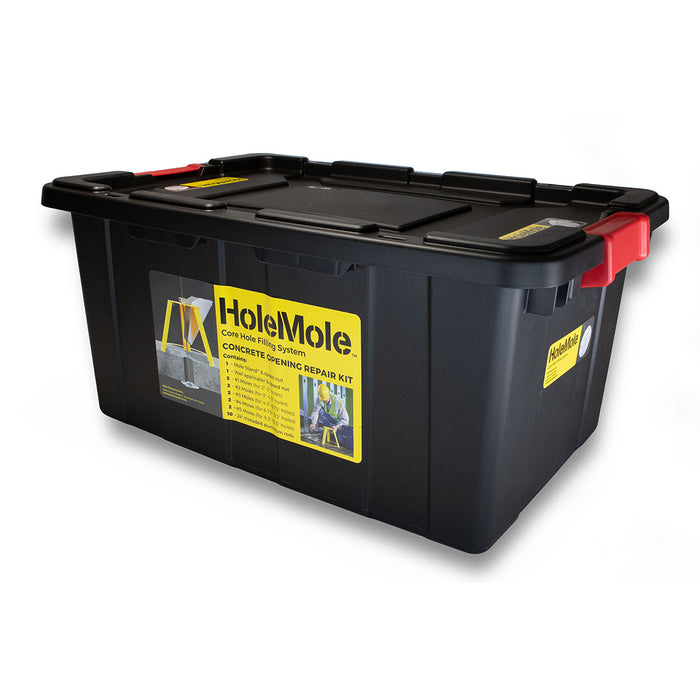

• 1 × Contractor Kit Bin: Durable organised storage for transport and site use.

Key Features

Why Choose the HoleMole Contractor Starter Kit?

• Complete five-size coverage: Handles measured concrete core holes from approximately 51 to 318mm.
• Fifteen Moles supplied: three of every standard size let teams complete multiple openings before restocking.
• Above-slab working method: Helps reduce routine access, boarding and disruption on the floor below.
• Floor and compatible wall tools: Includes both the Mole Stand and Wall Applicator, each supplied with a SpeedNut.

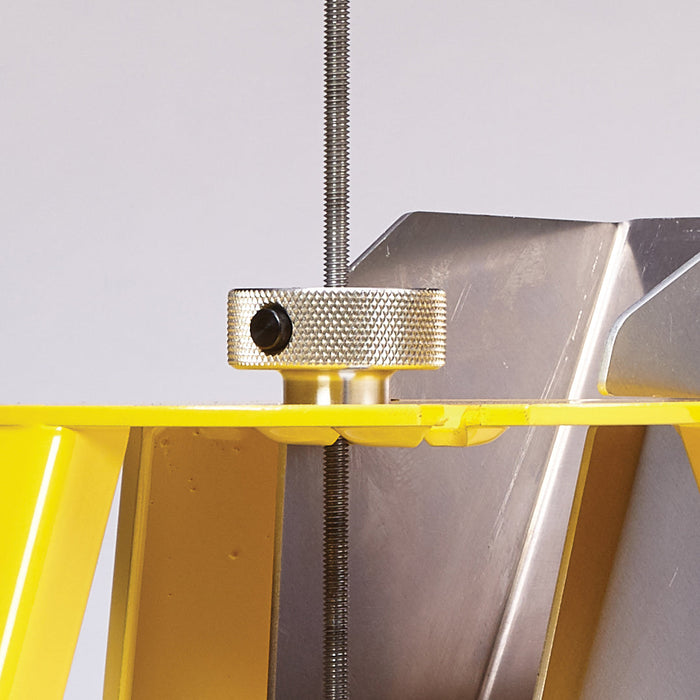

• Fast-action rod fixing: The SpeedNut uses a push-button thread release for quick positioning before final tightening.
• Controlled material placement: The Speed Chute guides the specified repair material towards the centre of the opening.
• Reusable application equipment: Stand, Wall Applicator, SpeedNuts and chute can move between installations.
• Organised contractor storage: The supplied bin keeps sizes and tools together between vehicles, stores and work areas.
• UK distributor support: Cable Glands UK provides nationwide supply and help selecting replacement Moles and accessories.

Technical Information

HoleMole Starter Kit Size Guide

Size-selection notice: Select from the measured clear opening diameter, not a nominal service size. Confirm the chosen Mole seats correctly against sound concrete and is suitable for the project repair method.

Applications

Who Is the HoleMole Starter Kit For?

The kit is designed for teams that regularly encounter different concrete core sizes and need a portable system ready for repeated site use.

• Concrete repair contractors: A complete starting range for varied floor-slab openings.
• Mechanical and electrical contractors: Making good redundant service cores after installation changes.
• Facilities and estates teams: Keeping a practical multi-size repair system available for planned works.
• Main contractors: Reducing routine work and coordination on the floor beneath suitable repairs.
• Data centres and technical facilities: Managing a range of redundant penetrations under controlled project procedures.
• Industrial and utility sites: Supporting specified repair compounds in varied core-hole diameters.

How to Use

The HoleMole 3-Step Installation Process

1. Measure the opening, choose the correct Mole size and prepare the concrete in accordance with the project specification.
2. Connect a supplied threaded rod, fold the Mole sections, lower it through the opening and pull upwards until it seats beneath the slab.
3. Place the Mole Stand over the opening, guide the rod through the centre slot and secure it using the SpeedNut.
4. Slide the Speed Chute into the stand and place the specified non-shrink grout or compatible repair material into the core.
5. Finish the upper surface flush and allow the repair to reach the set or cure stage required by the material instructions.
6. Remove the reusable stand, SpeedNut and chute, then trim or break the rod as required by the approved installation method.

Important: For a vertical opening, use the Wall Applicator and the manufacturer’s wall-installation method. Complete a suitable risk assessment and follow all project, repair-material and temporary-works requirements.

FAQs

How many core holes can the Starter Kit complete?

The kit contains ten Moles and ten threaded rods, providing the consumable former and rod components for up to ten correctly sized installations before replacement Moles and rods are required. The application tools are reusable.

What hole sizes are covered?

The five Mole sizes cover measured openings from 2 to 12.5 inches, approximately 51 to 318mm.

Does the kit contain two of every Mole size?

Yes. It includes two each of sizes #1, #2, #3, #4 and #5, giving ten Moles in total.

Are the Mole Stand and Wall Applicator both included?

Yes. The kit includes one Mole Stand and one Wall Applicator, each supplied with a SpeedNut.

Is grout included in the Contractor Starter Kit?

No. Repair mortar, grout and other filling products must be selected and purchased separately to meet the project specification.

Which parts are reusable?

The Mole Stand, Wall Applicator, SpeedNuts, Speed Chute and storage bin are reusable. Each Mole and its threaded rod form part of an individual completed repair.

Can the kit be used for fire-rated openings?

The HoleMole components provide forming and support only. A fire-rated opening must use a complete tested or assessed fire-stopping system suitable for the substrate, services and required resistance.

Where can UK contractors order the HoleMole Starter Kit?

The complete kit is available from Cable Glands UK, with nationwide supply and technical support from Manchester.
