HoleMole Mole Stand with SpeedNut – Core-Hole Support
Description
HoleMole Mole Stand with SpeedNut – Reusable Core-Hole Support

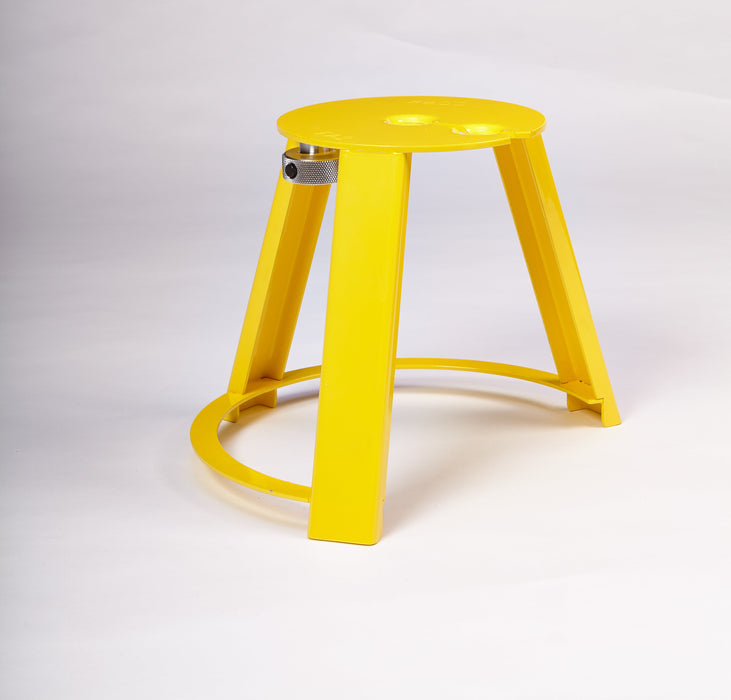

- Three-legged steel support: Positions directly above a concrete core hole to hold the Mole firmly beneath the slab.
- SpeedNut included: The push-button fixing slides quickly along the threaded rod before being turned for final tightening.
- Reusable application tool: Remove the stand and SpeedNut after the repair has reached the required set, then use them on the next opening.
The HoleMole Mole Stand with SpeedNut is the reusable support assembly used during horizontal concrete core-hole repairs. Once the correctly sized Mole has been lowered through the opening and drawn back against the underside of the slab, the threaded rod is guided into the centre of the stand. The supplied SpeedNut then secures the rod, maintaining upward tension on the former while the specified repair material is placed.
Its robust three-legged steel construction distributes support around the opening while leaving space for the HoleMole Speed Chute. This arrangement lets the installer control the former and fill the core from the same working level, helping reduce the routine need to travel to the floor below, install temporary plywood or coordinate access beneath the repair.
The Mole Stand is designed for use across the five standard HoleMole sizes, covering measured openings from approximately 51 to 318mm. Unlike the galvanised-steel Mole, which remains beneath the completed repair, the stand and SpeedNut are removed once the filling material has achieved the set required by the approved method. They can then be moved to the next opening, making this a practical system component for contractors completing repeated core-hole repairs.
Cable Glands UK supplies the HoleMole system throughout the UK, with product support from our Manchester team. This listing contains one Mole Stand and one SpeedNut; Moles, threaded rods, Speed Chute and repair material are supplied separately unless the product listing states otherwise.
Key Features
Key Features of the HoleMole Mole Stand and SpeedNut
- Horizontal core-hole support: Holds the connected Mole against the underside of a concrete floor slab during filling.
- Stable three-leg layout: Positions around the opening while keeping the centre accessible for the threaded rod and Speed Chute.
- Heavy-duty steel construction: Built as a robust reusable tool for normal HoleMole installation work.

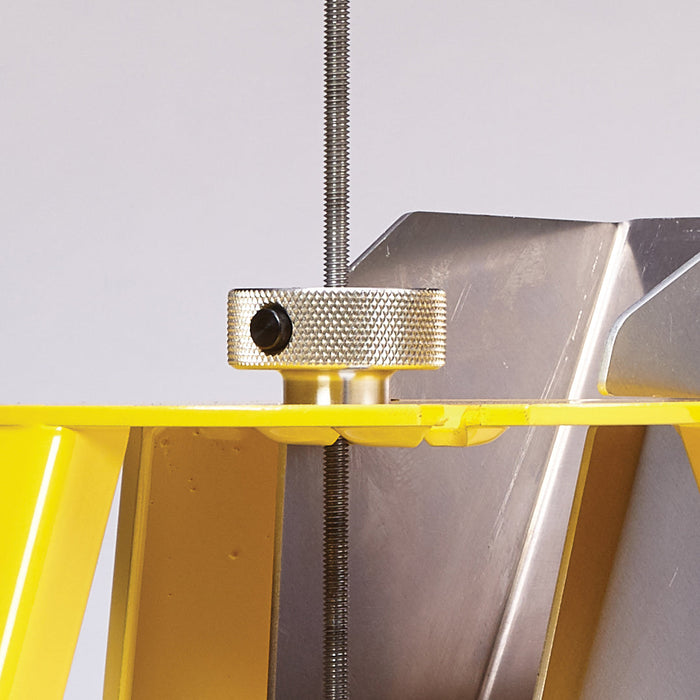

- Quick rod positioning: The SpeedNut plunger disengages from the thread so it can slide into position without being wound along the full rod.
- Final mechanical tightening: Releasing the plunger re-engages the thread, allowing the nut to be turned to secure the assembly.
- Five-size compatibility: Suitable for installations using HoleMole sizes #1 to #5 when the correct former has been selected.
- Speed Chute ready: The stand accepts the formed HoleMole Speed Chute for controlled placement of the chosen repair material.
- Reusable equipment: The stand and SpeedNut can be removed, inspected and used again after the repair has reached the required set.
Technical Information
HoleMole Mole Stand and SpeedNut Technical Data
| Product type | Reusable horizontal core-hole support assembly |
| Primary application | Concrete floor and slab openings |
| Stand form | Three-legged support stand |
| Stand material | Steel |
| Fastener supplied | 1 × HoleMole SpeedNut |
| Rod compatibility | Standard HoleMole threaded Mole rods |
| Mole compatibility | HoleMole sizes #1 to #5 |
| Filling accessory | Compatible HoleMole Speed Chute |
| Reusable | Yes, subject to inspection and condition |
| Moles and rods included | No |
| Repair material included | No |
| Unit supplied | 1 × Mole Stand and 1 × SpeedNut |
How to Use
How to Use the HoleMole Mole Stand
- Measure the concrete opening, select the correct Mole and prepare the substrate in accordance with the project specification.
- Connect the threaded rod to the Mole, lower the former through the core and pull upwards until it seats beneath the slab.
- Position the Mole Stand directly over the opening and guide the threaded rod through the stand slot towards its centre.
- Depress the SpeedNut plunger, slide the nut down the rod, release it to re-engage the thread and turn it to secure the Mole.
- Fit the compatible Speed Chute and place the specified non-shrink grout or repair material into the opening.
- After the material has reached the set required by the approved method, remove the Speed Chute, SpeedNut and Mole Stand. Inspect and clean the reusable tools before storage.
FAQs
What Does the HoleMole Mole Stand Do?
The Mole Stand holds the connected HoleMole former against the underside of a horizontal concrete slab while repair material is placed into the core opening from above.
Is a SpeedNut supplied with the Mole Stand?
Yes. This product includes one HoleMole SpeedNut for securing the threaded rod to the stand.
Can the stand be used with every Mole size?
The stand is designed for use with the five standard HoleMole sizes. Always select the former from the measured opening diameter.
Does this product include a Mole or threaded rod?
No. It contains the reusable stand and SpeedNut only. Individual Moles are normally supplied with their corresponding threaded rods.
Is the Mole Stand used for wall openings?
No. Vertical concrete openings use the HoleMole Wall Applicator and a suitable wall-installation method.
Do I need the Speed Chute as well?
The Speed Chute is the compatible accessory used to guide repair material through the stand and towards the centre of the opening. It is sold separately unless stated otherwise.
Where can I buy the Mole Stand in the UK?
Cable Glands UK is the exclusive UK distributor for HoleMole, supplying contractors and project teams nationwide from Manchester.
