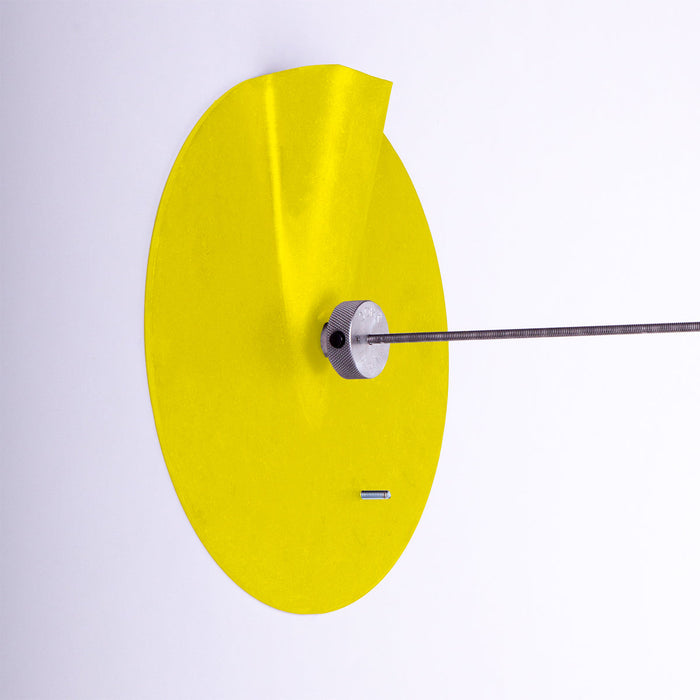

HoleMole Wall Applicator with SpeedNut – Vertical Core Holes
Description
HoleMole Wall Applicator with SpeedNut – Vertical Core-Hole Tool
- Made for vertical openings: Supports compatible HoleMole installations through concrete walls and other suitable vertical surfaces.
- SpeedNut supplied: Secures the threaded rod after the Mole and applicator have been positioned.
- Top filling access: Repair material is introduced through the applicator chute while the former is held against the rear face of the wall.
The HoleMole Wall Applicator with SpeedNut adapts the HoleMole core-hole filling method for suitable vertical concrete openings. The selected Mole is connected to its threaded rod, collapsed and inserted horizontally through the prepared core. Once the former has opened beyond the rear face, the rod is pulled back so the Mole seats behind the wall.
The threaded rod passes through the Wall Applicator, which is positioned and fastened against the accessible wall face in accordance with the approved installation method. The included SpeedNut holds the rod and Mole in place. Compatible repair material can then be placed through the chute at the top of the applicator, supporting a controlled fill from one side of the wall.
HoleMole sizes #2 to #5 feature bendable positioning tabs intended to assist resting position and wall applications. The opening must still be measured carefully, and the chosen Mole must provide the seating and overlap required by the manufacturer’s method and project specification. Repair mortar or grout must also be suitable for vertical placement and for any structural, fire, acoustic or waterproofing performance required by the project.
This reusable applicator is supplied with one SpeedNut. Moles, threaded rods, wall fixings and repair material are not included unless expressly stated. Cable Glands UK is the exclusive UK distributor for HoleMole, supplying vertical core-hole repair tools and replacement components nationwide.
Key Features
Key Features of the HoleMole Wall Applicator
- Vertical repair method: Designed specifically for suitable core holes through concrete walls and vertical surfaces.
- Single-side working: Allows the Mole, rod, applicator and filling material to be managed from the accessible face.
- SpeedNut included: Uses the HoleMole push-button fixing for quick rod positioning and final threaded tightening.
- Integrated filling route: The upper chute provides access for placing compatible vertical-grade repair material.
- Compatible Mole system: Works with the correctly sized HoleMole former and standard threaded Mole rod.
- Wall-positioning support: Mole sizes #2 to #5 include bendable tabs intended to assist approved wall installations.
- Reusable application equipment: The Wall Applicator and SpeedNut can be removed after the repair has reached the required set.
- UK product support: Available with selection guidance from Cable Glands UK for contractors throughout the United Kingdom.
Technical Information
HoleMole Wall Applicator Technical Data
| Product type | Reusable vertical core-hole applicator |
| Primary orientation | Vertical concrete wall openings |
| Installation side | Accessible face of the wall |
| Fastener supplied | 1 Ă— HoleMole SpeedNut |
| Rod compatibility | Standard HoleMole threaded Mole rods |
| Mole selection | Correct size chosen from the measured opening diameter |
| Wall-specific Mole feature | Bendable positioning tabs on sizes #2 to #5 |
| Material placement | Through the upper applicator chute |
| Reusable | Yes, subject to inspection and condition |
| Wall fixings included | No |
| Mole and rod included | No |
| Repair material included | No |
| Unit supplied | 1 Ă— Wall Applicator and 1 Ă— SpeedNut |
How to Use
How to Use the HoleMole Wall Applicator
- Measure the clear wall opening and select the correctly sized Mole. Prepare the concrete and repair material to the approved specification.
- Connect the threaded rod to the Mole, fold the perimeter sections and insert the former horizontally through the opening.
- Pull the rod towards the accessible face so the Mole opens and seats correctly against the rear of the wall. Adjust applicable positioning tabs only as directed by the manufacturer’s method.
- Pass the rod through the Wall Applicator, position the applicator against the wall and secure it using the project-approved fixing method.
- Depress the SpeedNut plunger, slide it into position, release the plunger and turn the nut to hold the rod and former securely.
- Place the suitable repair material through the top chute, complete the finish and leave the assembly undisturbed until the specified set has been achieved.
- Remove the SpeedNut and applicator in accordance with the method statement, then inspect and clean the reusable equipment.
FAQs
What Is the HoleMole Wall Applicator Used For?
The Wall Applicator holds a HoleMole former and threaded rod in position while a suitable concrete core hole through a vertical wall is filled from the accessible side.
Does the Wall Applicator include a SpeedNut?
Yes. One HoleMole SpeedNut is supplied with the applicator.
Which Mole sizes are intended for wall applications?
Sizes #2 to #5 have bendable positioning tabs specifically intended to assist resting position and compatible wall installations. Always verify the measured opening and project method.
Are wall fixings supplied?
No. The fastening method must be selected for the wall substrate, site conditions and project requirements.
Can standard floor grout be used in a wall?
Use only a repair material confirmed as suitable for vertical placement and the required project performance. Follow its manufacturer’s instructions.
Is the Wall Applicator reusable?
Yes. The applicator and SpeedNut are reusable tools, provided they are removed at the correct stage, cleaned and inspected before the next use.
Can I use the Mole Stand instead?
The Mole Stand is intended for horizontal slab openings. Use the Wall Applicator for the manufacturer’s vertical-opening method.
