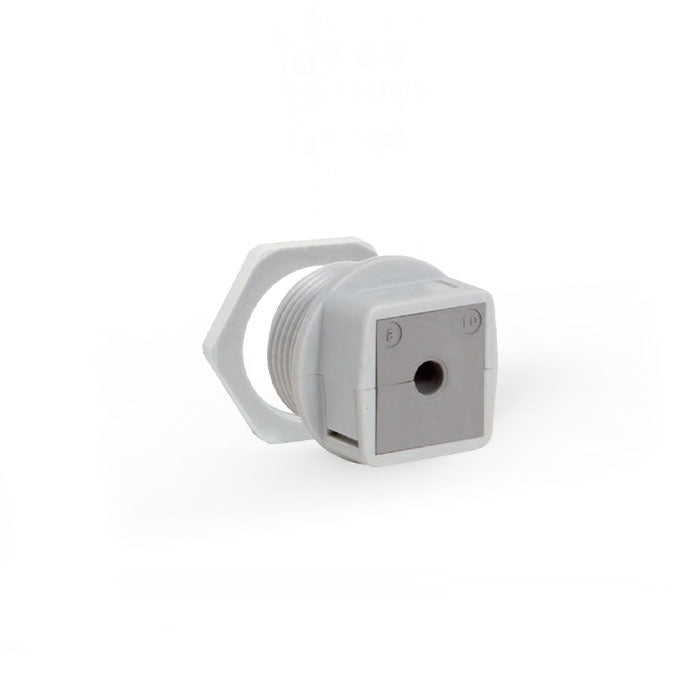

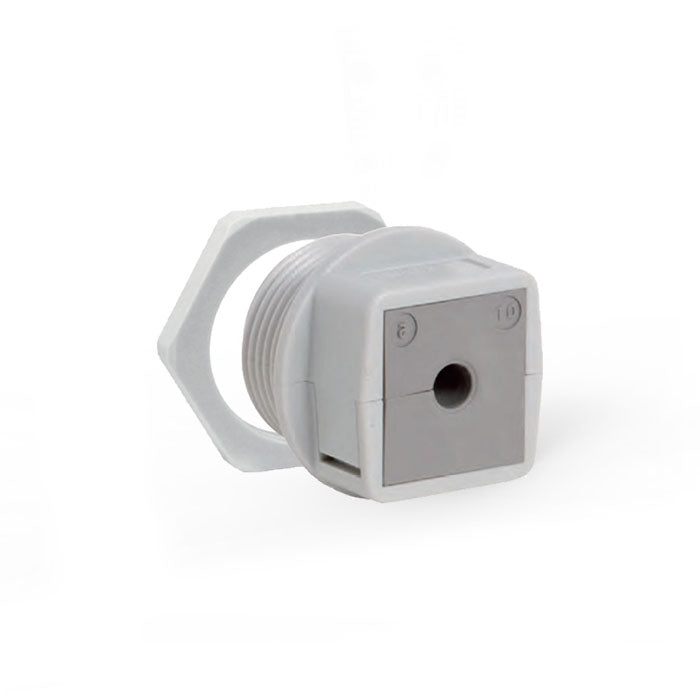

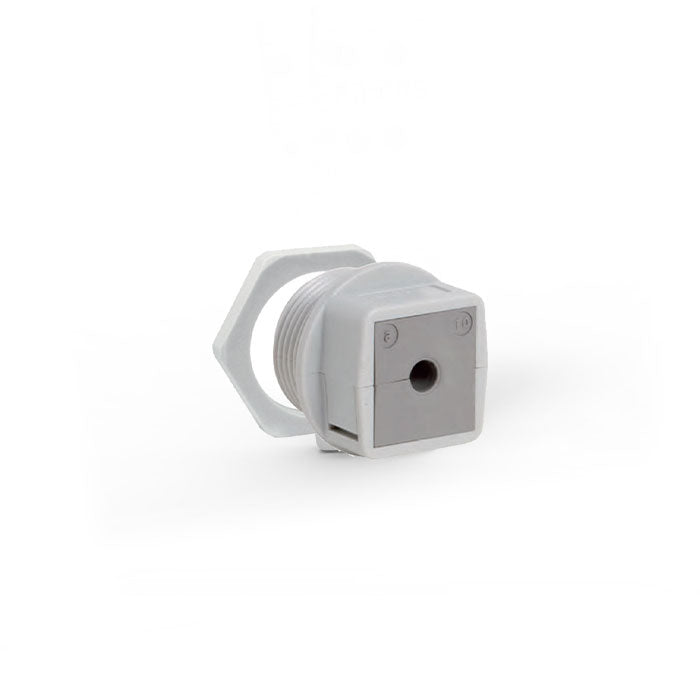

KBL Split Cable Gland – Divisible Retrofit Cable Gland
The KBL Split Cable Gland is a divisible cable gland designed to be installed retrospectively around pre-terminated cables. It installs in a similar way to a standard nylon cable gland, with the added advantage that it can be opened and fitted around cables that already have plugs, connectors or moulded ends.

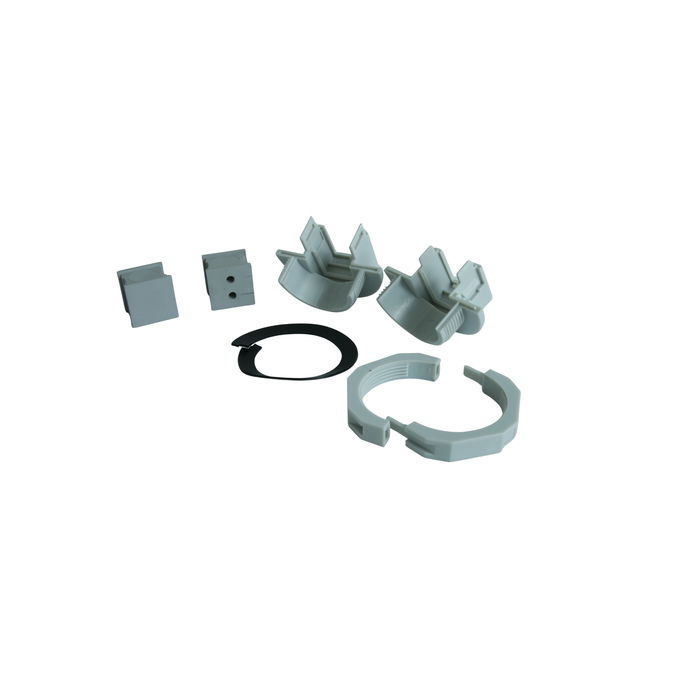

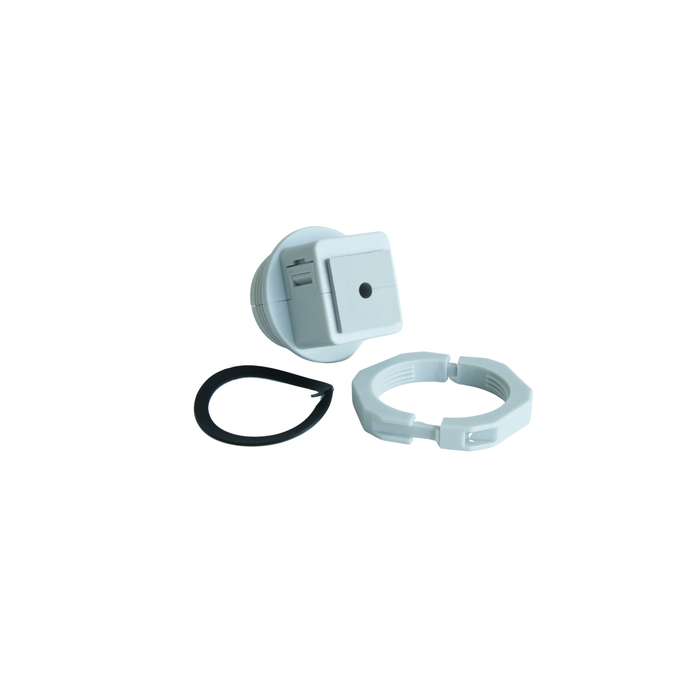

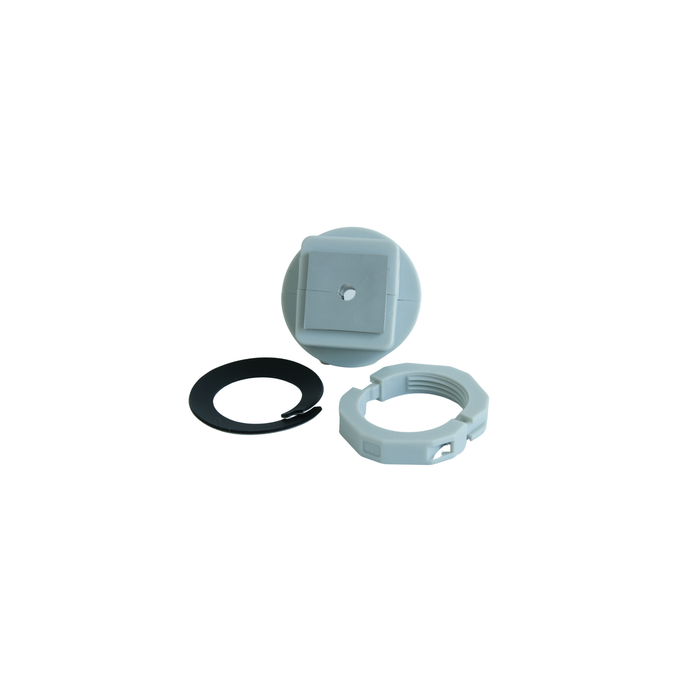

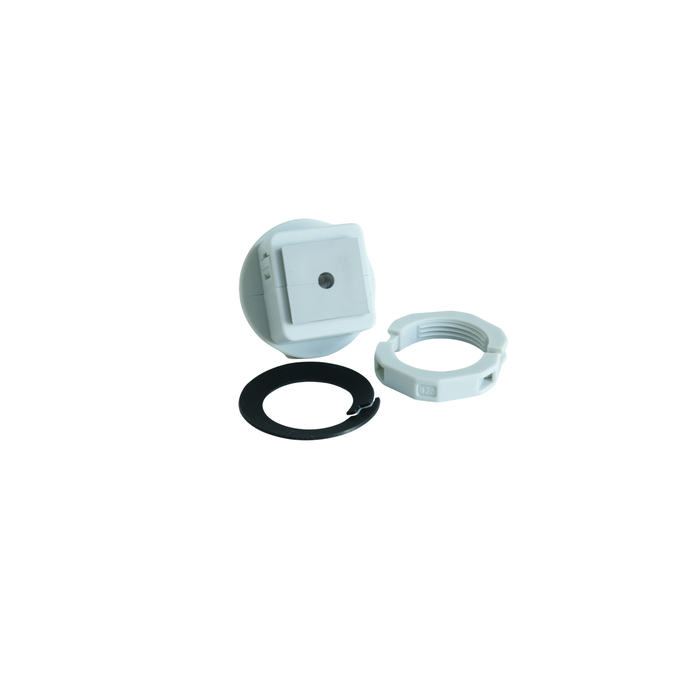

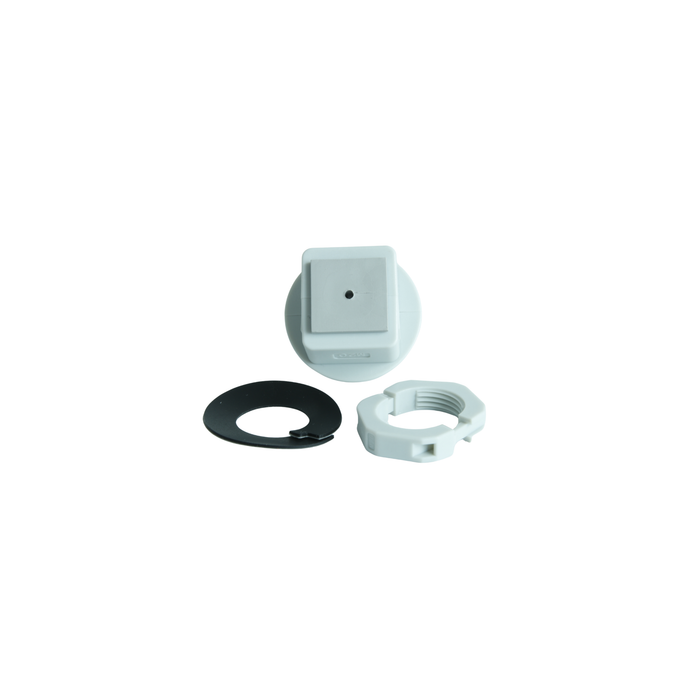

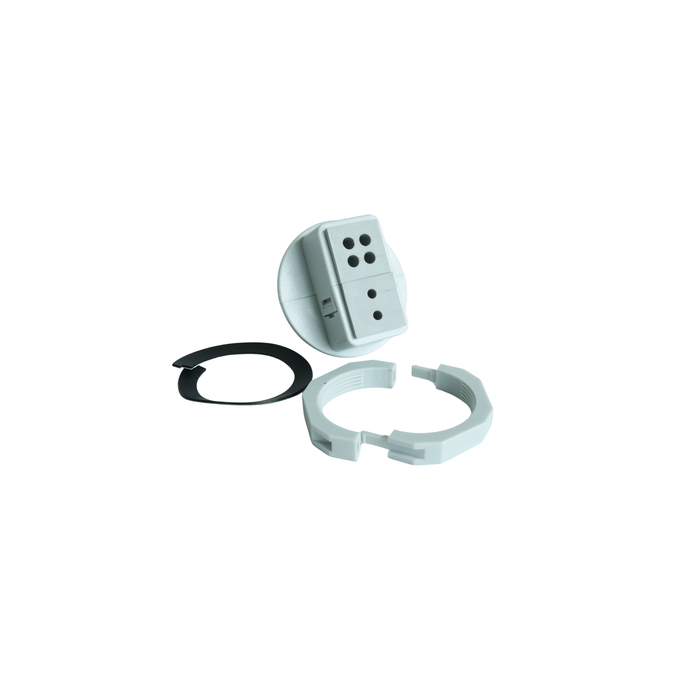

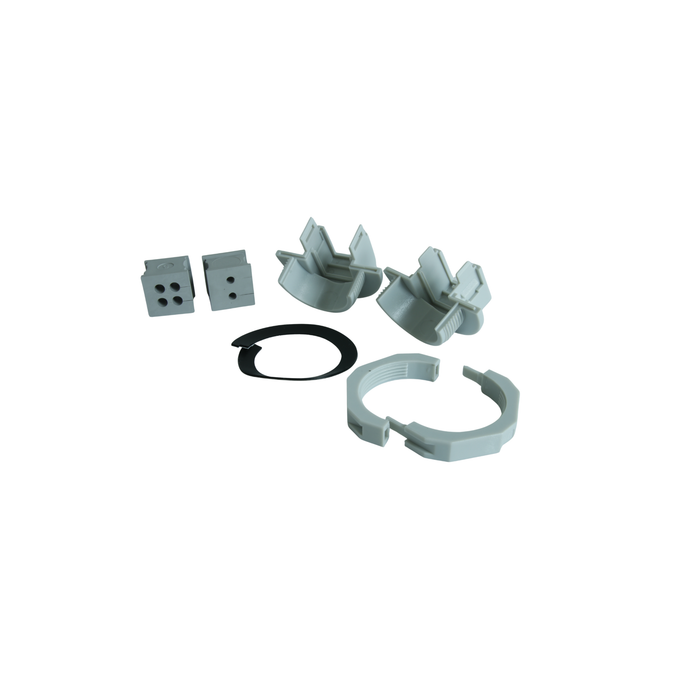

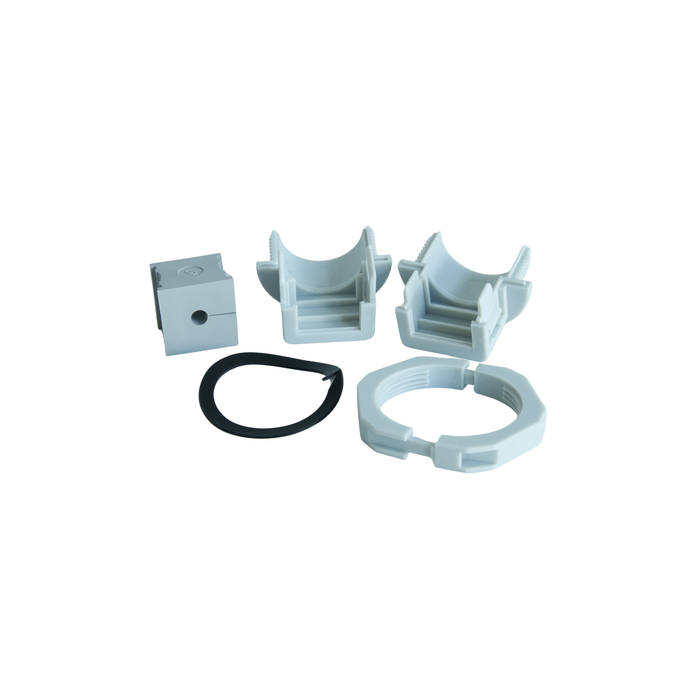

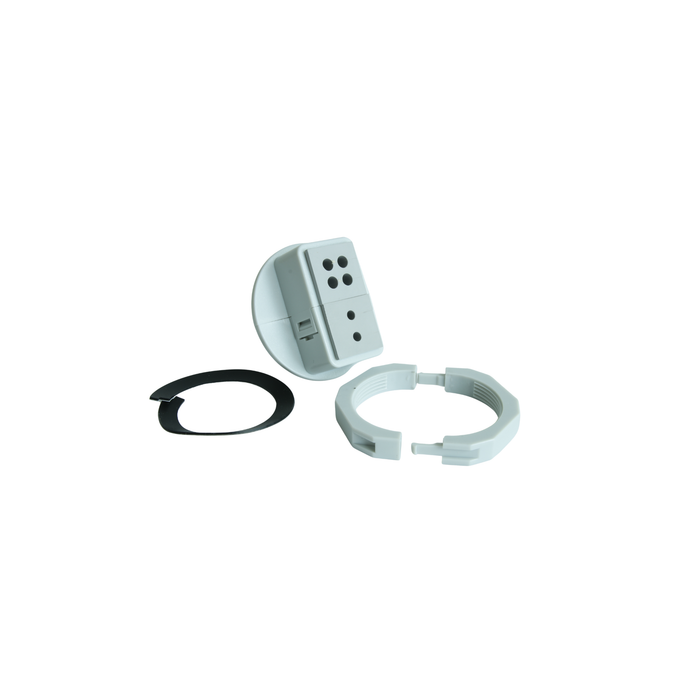

Each KBL Split Cable Gland is supplied complete with a split locknut and a rubber self-adhesive sealing gasket. This allows the gland to be securely fixed and sealed to an enclosure in the same way as a conventional cable gland.
The split construction makes it ideal for retrofit, maintenance and upgrade applications where cutting, disconnecting or re-terminating the existing cables would be impractical or prohibited.
When correctly assembled using the supplied sealing gasket and suitable cable grommets, the KBL Split Cable Gland provides ingress protection up to IP54.
Important: The cable gland body is supplied without rubber cable grommets. Grommets must be selected according to the outside diameter of each cable and purchased separately.
Click here to view the compatible cable grommets.
Key Features
Key Features and Benefits
- Split and divisible design: Allows the cable gland to be installed around existing pre-terminated cables.
- Retrofit cable entry solution: No cable cutting, disconnection or re-termination is required.
- Split locknut included: Each cable gland is supplied complete with the corresponding split locknut.
- Self-adhesive sealing gasket: Includes a rubber gasket to help seal the gland against the enclosure.
- Metric threaded entry: Installs similarly to a conventional metric cable gland.
- IP54 protection: Provides IP54 ingress protection when correctly assembled with the supplied gasket and suitable grommets.
- Flame-retardant construction: Manufactured from UL94-V0 self-extinguishing polycarbonate.
- Halogen-free and silicone-free: Manufactured using materials containing no halogens or silicone.
- Flexible cable capacity: Options are available for single or multiple cables, depending on the selected gland size and module configuration.
Applications
Typical Applications for KBL Split Cable Glands
KBL Split Cable Glands are suitable for installations where pre-terminated cables must be routed into an enclosure without removing their plugs, connectors or moulded ends.
- Electrical control panels and enclosures
- Machinery and industrial equipment
- Sensors, actuators and instrumentation cables
- Cable harnesses fitted with moulded connectors

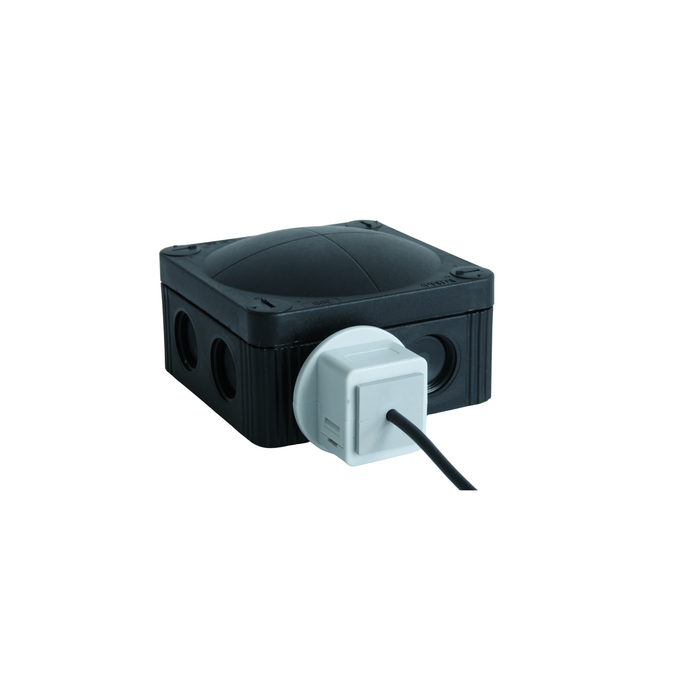

- Retrofit cable additions to existing cabinets and enclosures
Technical Information
KBL Split Cable Gland Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Divisible retrofit cable gland |
| Material | Polycarbonate |
| Colour | Grey |
| Flame-Retardant Grade | UL94-V0, self-extinguishing |
| Ingress Protection | IP54 when correctly assembled with the sealing gasket and suitable grommets |
| Operating Temperature | -30°C to +100°C in static applications |
| Material Features | Halogen-free and silicone-free |
| Thread Type | Metric |
| Thread Length | 14mm |
| Supplied With | Split locknut and rubber self-adhesive sealing gasket |
| Cable Grommets Included | No – compatible grommets are purchased separately |
Size Chart
KBL Split Cable Gland Sizes and Module Configurations
Choose the gland size and module configuration that matches the number and outside diameters of the cables entering the enclosure. Compatible rubber cable grommets must be ordered separately.

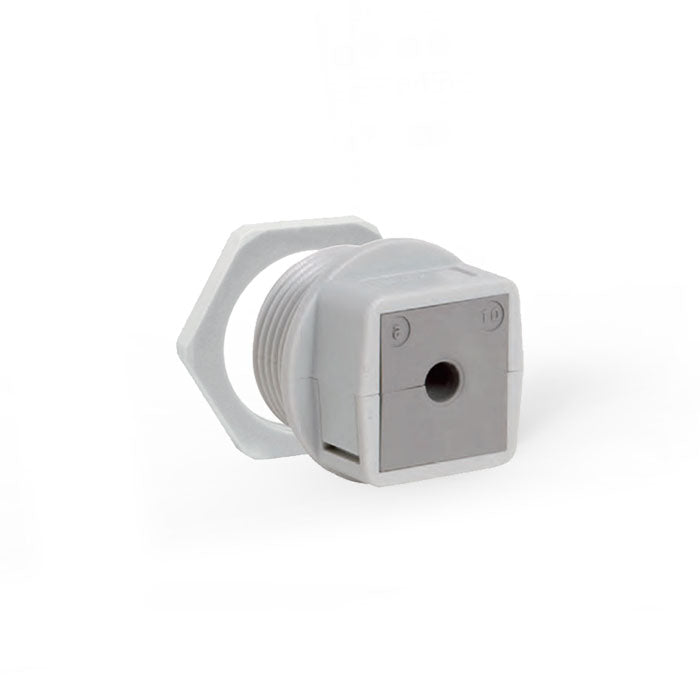

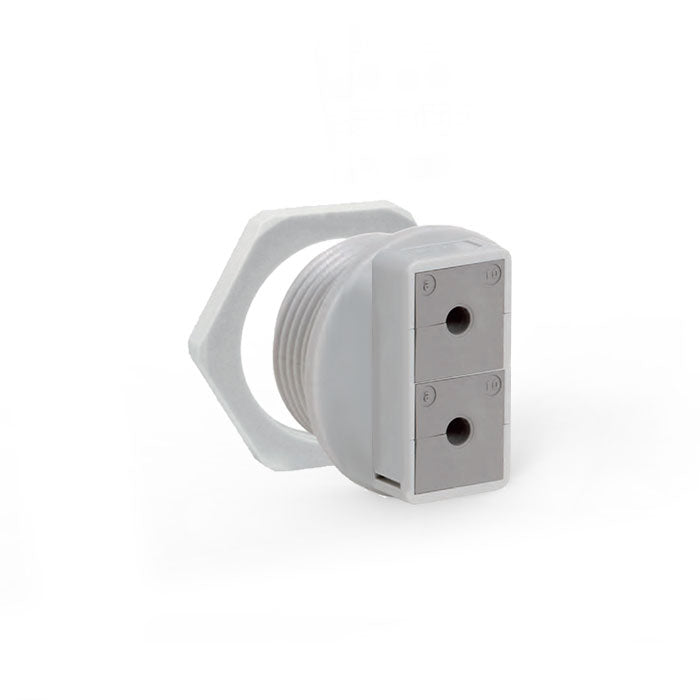

| Type | Number of Cable Entries | Thread | Packaging Unit | Module Configuration |
|---|---|---|---|---|
| KBL-QVT20 | 1 | M20 × 1.5 | 1 | 1 × small module (20 × 20mm) – maximum grommet diameter 13mm (KT13 or below) |
| KBL-QVT25 | 1 | M25 × 1.5 | 1 | 1 × small module (20 × 20mm) |
| KBL-QVT32 | 1 | M32 × 1.5 | 1 | 1 × small module (20 × 20mm) |
| KBL-QVT40/1 | 1 | M40 × 1.5 | 1 | 1 × large module (40 × 40mm) |
| KBL-QVT40/2 | 2 | M40 × 1.5 | 1 | 2 × small modules (20 × 20mm) – maximum grommet diameter 13mm (KT13 or below) |
| KBL-QVT50/1 | 1 | M50 × 1.5 | 1 | 1 × large module (40 × 40mm) |

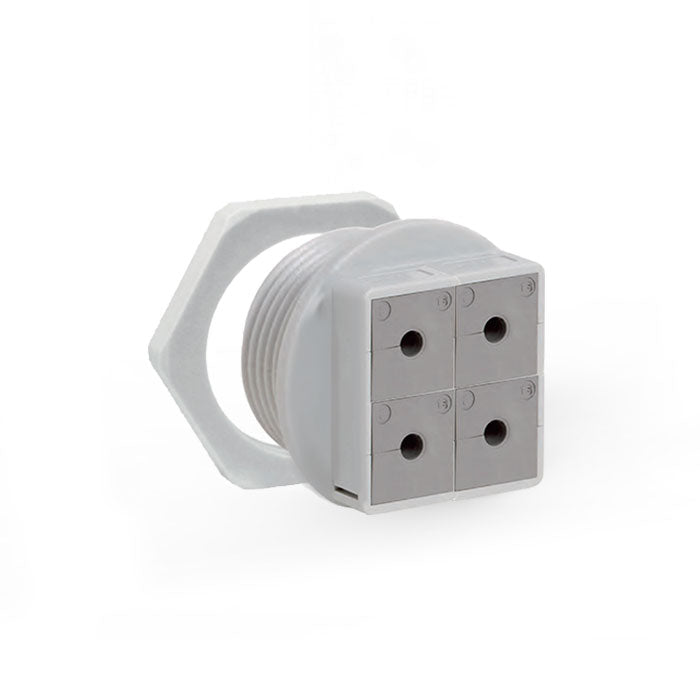

| KBL-QVT50/4 | 4 | M50 × 1.5 | 1 | 4 × small modules (20 × 20mm) – maximum grommet diameter 16mm (KTS16 or below) |
Please note: Cable grommets are not included with the KBL Split Cable Gland and must be selected according to the outside diameter of each cable.
