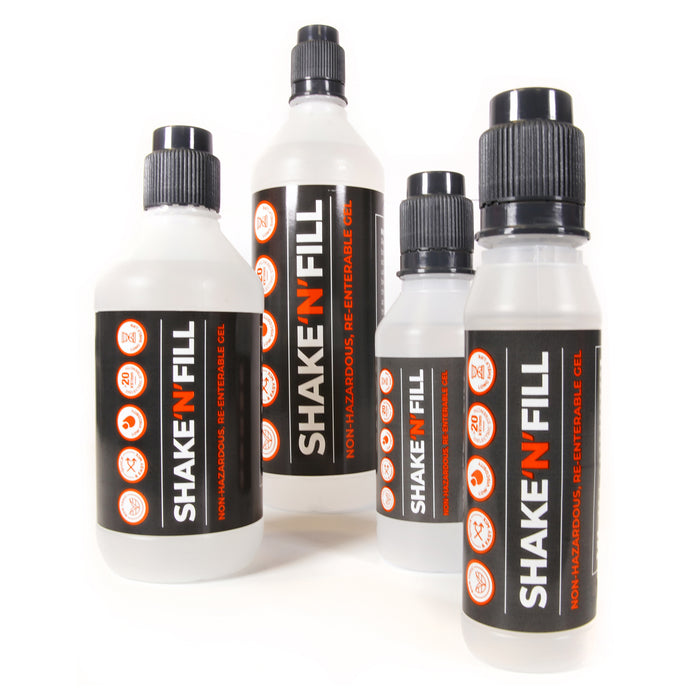

Shake'N'Fill Re-Enterable Gel
Shake‘N’Fill is a soft, re-enterable, clear general-purpose silicone elastomeric gel designed for use with electronic and electrical applications to protect against water, moisture, humidity, dust, vibrations and mechanical shock. Shake‘N’Fill is a low viscosity, 2-component system that is easily mixed within a unique bottle that holds the catalyst in a separate compartment within the lid. No more messing around mixing and stirring the components in a jug. Just Shake‘N’Fill.
• Non-toxic and safe
• Quick & Easy to mix
• Fast in cross-linking (<10 min), without temperature increase
• Low viscosity
• Operating temperature: -50/+180°C
• Long shelf life
• Dielectric strength: >20 kV/mm

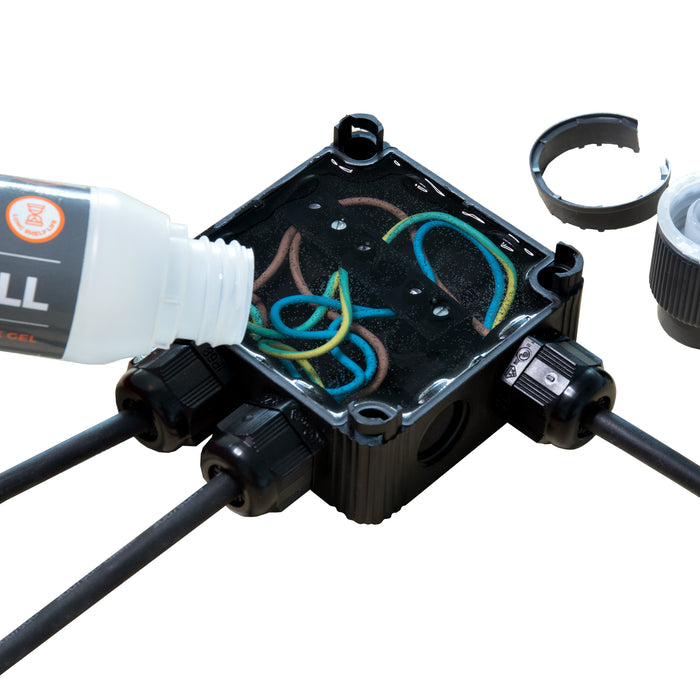

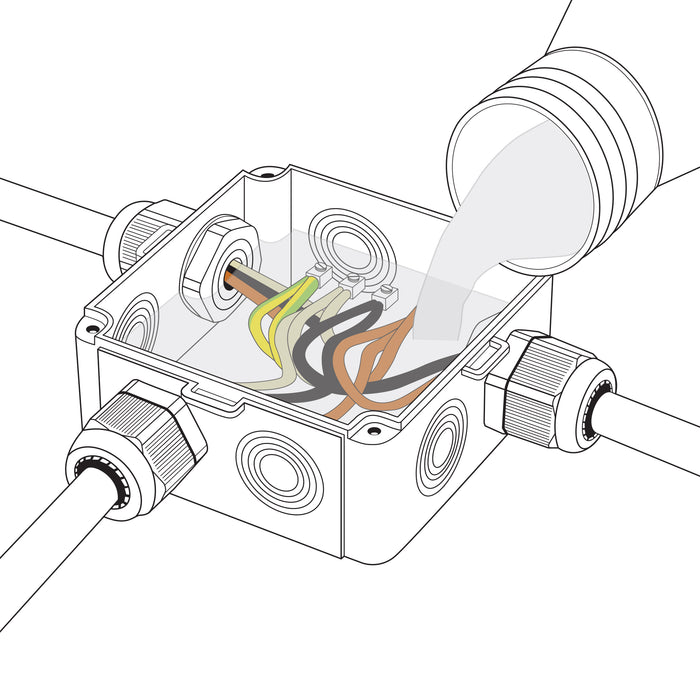

Filling & sealing junction boxes, electrical insulation connections up to 1 kV.
Fully cured Shake‘N’Fill gel exhibits good adhesion to most substrates such as: Aluminium, Stainless Steel, ABS, PCB Boards, Polycarbonate & Nylon 66.
Cross-links within 10 minutes. Full Cure: At 25 degrees, the full curing time is 1 hour. The curing times reduce with higher temperature.
Once the two components have been mixed by shaking the bottle, the handling time is between 3 & 5 minutes.
Dielectric strength: 20.52 kV/mm according to CEI EN 602431 standard. Volume Resistivity: 2.0E+15 .cm according to CEI 1523 standard.
|Cured Gel Properties||
After 7 days cure at 23+/-2°C and 65% relative humidity.
Penetration (Cone Weight): 19.5/6.0mm. Specific Gravity: Part A1 0.97. Min. Service Temperature: -50°C. Max. Service Temperature: 180 °C.
1. Remove the grey clip at the bottom of the cap.
2. Screw the cap until the internal seal breaks, Approx 2 full rotations.
3. Shake the bottle for at least 15 seconds.
4. Unscrew the cap to pour the gel.
Type of WISKA COMBI Box Required Shake N Fill Gel
Combi 108 (Empty) fixed to a wall 200ml
Combi 206 (Empty) fixed to a wall 100ml
Combi 304 (Empty) fixed to a wall 180ml
Combi 308 (Empty) fixed to a wall 200ml
Combi 407 (Empty) fixed to a wall 320ml
Combi 607 (Empty) fixed to a wall 510ml
Combi 1010 (Empty) fixed to a wall 1010ml
Combi 1210 (Empty) fixed to a wall 1250ml
Combi 1610 (Empty) fixed to a wall 2500ml
||Seals 1 x 308 WISKA Box|
|Shake'N'Fill 250||250||Seals 2 x 308 WISKA Box|
||Seals 4 x 308 WISKA Box|
|Shake'N'Fill 1000||1000||Seals 8 x 308 WISKA Box|
