Automotive Conduit Glands
by Delfingen
Original price
£7.44
-
Original price
£56.28
Original price
£7.44
£7.44
-
£56.28
Current price
£7.44
Description

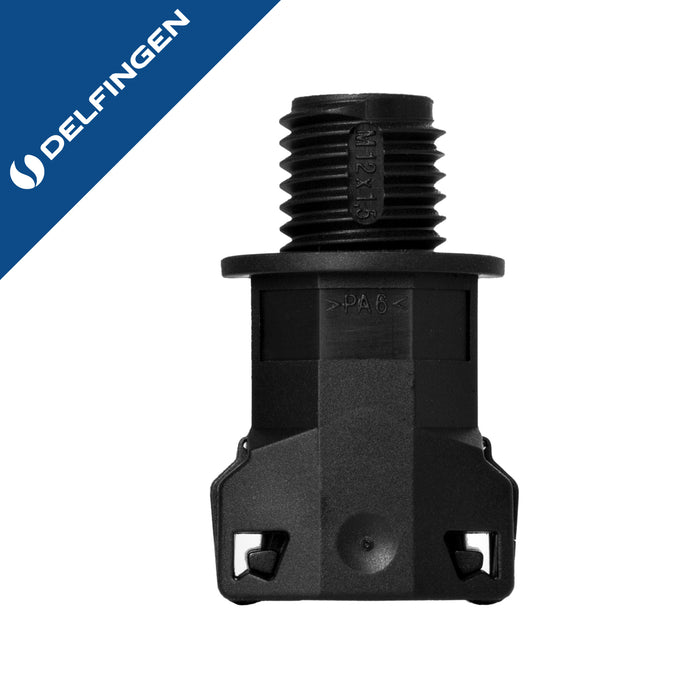

Sem-Fast straight glands for automotive conduit with "normal" and "UFW" profiles. Conical sealing on corrugated tube. Thread sealing by sealing bars. Special click in system. Easy and tight assembly, insert tube in the closed gland. Tube is turnable within the gland. High tensile strength. Free of halogen. Suitable for engineering, Ship and train building, Vehicle industries and switch cabinets.
Material
Polyamide 6.
Colour
Black.
Technical Data
| Type | Sem-Fast Straight Gland |
|---|---|
| Thread Size |
Metric & PG Thread Available |
| Construction | N/A |
| Max. Operating Temp. |
120°C |
| Min. Operating Temp. | -40°C |
| IP Rating |
IP65 - IP68** |
** To acheive the protection class IP68, you will need the purchase the seperate "O" ring. Slip the "O" ring into the first groove of the cut end of the corrugated tube section on the screw side. For normal profiled size NW50 slip 2 "O" rings into the first and second groove of the tube.
Size Chart
| Product Ref. | Pack Size | External Thread | For Profile NW | Overall Length (mm) | Thread Length (mm) |
|---|---|---|---|---|---|
| 3805047 | x10 |
M12x1.5 |
7.5 | 34 | 11 |
| 3805011 | x10 | M12x1.5 | 8.5 | 35 | 11 |
| 3805000 | x10 | M12x1.5 | 10 | 36 | 12 |
| 3805001 | x10 | M16x1.5 | 10 | 36 | 12 |
| 3805007 | x10 | M16x1.5 | 12+13 | 38 | 12 |
| 3805008 | x10 | M20x1.5 | 12+13 | 38 | 12 |
| 3805002 | x10 | M20x1.5 | 17 | 43 | 13 |
| 3805003 | x10 | M25x1.5 | 17 | 43 | 13 |
| 3805022 | x10 | M25x1.5 | 22 | 48 | 13 |
| 3805013 | x10 | M25x1.5 | 23 | 48 | 13 |
| 3805015 | x10 | M32x1.5 | 29 | 52 | 15 |
| 3805017 | x10 | M40x1.5 | 37 | 62 | 17 |
| 3805019 | x10 | M50x1.5 | 50 | 68 | 19 |
| 3805012 | x10 | PG7 | 8.5 | 35 | 11 |
| 3805024 | x10 | PG7 | 10 | 36 | 12 |
| 3805006 | x10 | PG16 | 17 | 43 | 13 |
