E1W Industrial Gland Kit (Peppers)
E1W Double Compression Cable Gland Kit

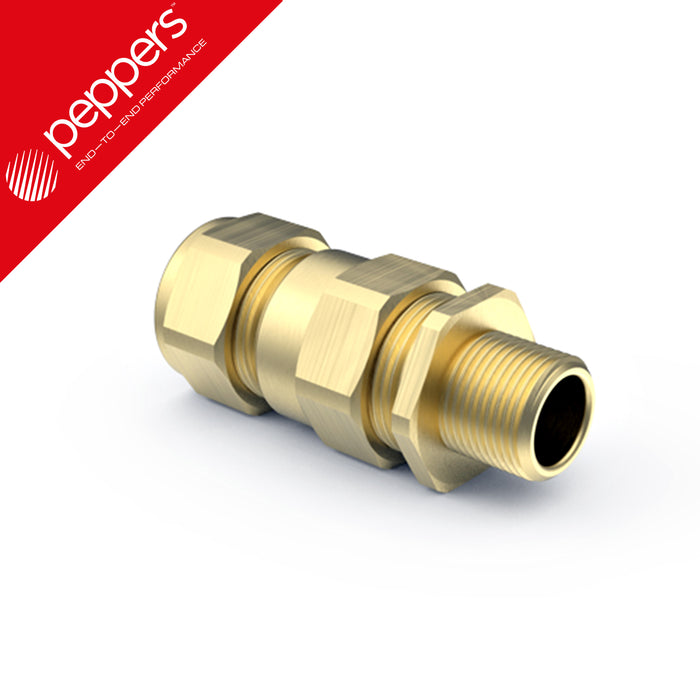

Peppers E1W double compression cable gland kit for SWA cables
Get superior cable termination and environmental sealing with the Peppers E1W double compression cable gland, for use with steel wire armour (SWA) and aluminium wire armoured cables. This industrial cable gland is for demanding applications.
Description
This cable gland kit includes cable gland, brass earth tag, PVC shroud, sealing washer or thread sealant and separate armour locking ring for easy installation. The double compression design gives a tight seal on the outer sheath and a strong inner seal on the cable insulation for an excellent environmental seal against dust, moisture and other contaminants.
Key Features
-
Brass cable construction for corrosion resistance
-
Compatible with wire armoured, steel wire, aluminium wire armour types
-
Precision-machined entry thread and thread length to fit a wide range of enclosures
-
Has armour lock and gland interface for mechanical strength
-
Can be used with or without washer or thread sealant depending on application
-
Includes sealing washer or thread sealant for extra flexibility during installation
-
Meets high ingress protection rating (IP66/68)
-
Available in both metric and imperial entry thread types
Why Buy This Gland Kit?
This premium gland kit is for terminating armoured cables in hazardous or high‑moisture areas. The brass gland is durable and the earth tag is for safe grounding. Whether you’re in energy, telecom or manufacturing this industrial solution gives a secure seal and electrical continuity.
Technical Details
-
Cable gland size in mm
-
SWA and AWA armoured cable types
-
Gives a seal on both inner and outer sheath
-
High quality materials: brass cable gland, durable PVC shroud, brass earth tag
-
Designed to maintain mechanical integrity throughout your installation
-
Can be used for flexible mounting with sealing washer or thread sealant
-
Maintains gland interface pressure with perfect thread length for all glands
Cable protection, safety and compliance with the E1W gland kit from Peppers.
| Type | E1W |
|---|---|
| Design Specification | BS6121, EN 62444, IEC 62444 |
| Gland Material | Brass |
| Ingress Protection | IP66 & IP68 to 50m |
| Finish | Brass |
| Seal Material | Neoprene |
| Cable Type | Steel Wire Armour |
| Armour Clamping | 5 Part |
| Sealing Technique | Compression Type |
| Sealing Area | Outer Sheath |
Size Chart
| Gland Size | 16 | 20S | 20 | 25 | 32 | 40 | 50 | 63 | 75 |
|---|---|---|---|---|---|---|---|---|---|
| Peppers Part No. | E1W/B/16 | E1W/B/20S | E1W/B/20 | E1W/B/25 | E1W/B/32 | E1W/B/40 | E1W/B/50 | E1W/B/63 | E1W/B/75 |
| No. per Pack | x1 | x1 | x1 | x1 | x1 | x1 | x1 | x1 | x1 |
| Cable Range (mm) | 8.4 - 13.5 | 11.5 - 16.0 | 15.5 - 21.1 | 20.3 - 27.4 | 26.7 - 34.0 | 33.0 - 40.6 | 45.7 - 53.2 | 58.4 - 65.8 | 71.1 - 78.0 |
| Entry Thread - D (mm) | M16 x 1.5 | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M32 x 1.5 | M40 x 1.5 | M50 x 1.5 | M63 x 1.5 | M75 x 1.5 |
| Entry Thread - E (mm) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 19 | 19 |
| Armour ⌀ (mm) | 0.9 | 0.15 - 1.25 | 0.15 - 1.25 | 1.25/1.6 | 1.6/2.0 | 1.6/2.0 | 2.0/2.5 | 2.0/2.5 | 2.5/3.0 |
| Approx. Length from Shoulder - F (mm) | 58.0 | 58.0 | 58.0 | 58.0 | 65.0 | 72.0 | 73.0 | 76.0 | 82.0 |
| Hexagon Across Flats - G (mm) | 24.0 | 24.0 | 30.0 | 37.6 | 46.0 |
55.0 |
65.0 |
80.0 |
90.0 |
| Hexagon Across Corners - H (mm) |
26.5 |
26.5 | 33.0 | 41.4 |
50.6 |
60.5 | 71.5 | 88.0 | 99.0 |
