Stainless steel roundtop cable gland with PG threading, providing excellent strain relief and a wide clamping range for unarmoured cables in industrial applications.

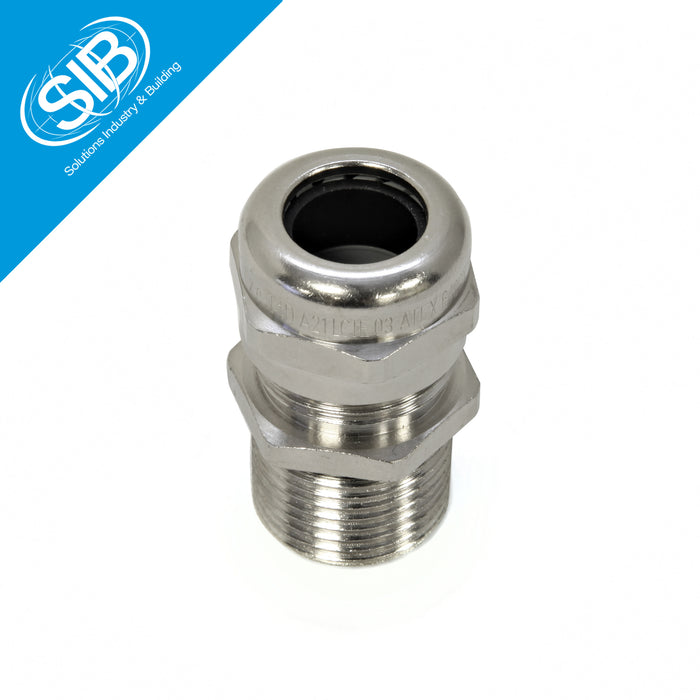

Stainless Steel Roundtop Glands (PG)

by SIB TEC France
£17.84 - £111.10
£18.41
£17.84 - £111.10
£18.41

Nickel-Plated Roundtop Glands (PG Stainless Steel Cable Glands)

The SIB TEC Nickel-Plated Roundtop Glands (PG Stainless Steel Cable Glands) are designed to seal, relieve strain, and protect a multitude of cables. These stainless steel cable glands are suitable for industrial and commercial use and perform in harsh environments.

Features

  • Material: 316 Stainless steel.

  • Thread: PG thread for enclosure and system compatibility.

  • Temperature Range: -40°C to +100°C.

  • Sealing and Protection: IP68 Seals to protect cables from water, dust, and contaminants.

Sizes

The Nickel-Plated Roundtop Glands (PG Stainless Steel Cable Glands) are available from PG7 to PG48

Use

  • Industrial and Commercial: For use in water, dust, and extreme temperature environments.

  • Enclosures and Systems: For use in systems that require sealed cable glands.

Benefits

  • Strain Relief: Keeps cables secure, reducing strain and damage.

  • Wide Temperature Range: -40°C to +100°C for harsh environments.

  • Durable: Stainless steel construction for corrosion resistance.

  • In Stock: Dispatched immediately to meet your deadlines.

Info

  • Sealing: Seals tight to protect cables from water and dust.

  • Thread: PG thread for system compatibility.

Why These?

  • Corrosion Resistant: Stainless steel construction for harsh environments.

  • Sealing: Protects cables from water, dust, and contaminants.

  • Temperature Range: -40°C to +100°C.

  • In Stock: Available now.

Buy

Sealing, protection, and strain relief for your cables and systems. Order the Nickel-Plated Roundtop Glands (PG Stainless Steel Cable Glands) today.



Technical Data
Parameter Specification
Thread PG 7, PG 9, PG 11, PG 13.5, PG 16, PG 21, PG 29, PG 36, PG 42, PG 48
Cable Diameter Range (mm)
  • PG 7: 2.5–6.5
  • PG 9: 3.5–8.0
  • PG 11: 6.0–10.0
  • PG 13.5: 10.0–14.0
  • PG 16: 12.5–18.0
  • PG 21: 17.0–24.0
  • PG 29: 23.0–32.0
  • PG 36: 32.0–40.0
  • PG 42: 40.0–47.0
  • PG 48: 45.0–53.0
Ingress Protection IP68
Material Nickel-plated brass with neoprene O-ring seal
Operating Temperature Range –40 °C to +100 °C (continuous), –20 °C to +120 °C (short-term)
Pack Quantity 1 unit (locknut sold separately)




Size Chart

Gland Size 7
 9
 11
 13
 16
 21
 29 36 42 48
No. per Pack x1 x1 x1 x1 x1 x1 x1 x1 x2 x3
Cable Range (mm) 2.5 - 6.5 4.0 - 9.5  6.0 - 11.5 7.0 - 13.0 8.0-15.0 11.0 - 19.0 16.0 - 26.0 22.0 - 34.5 27.0 - 4.0 35.0 - 48.0
Entry Thread (mm) PG7 PG9 PG11 PG13 PG16 PG21 PG29 PG36 PG42 PG48
H (mm) 14 17 20
 22
 24
 30
 40 50 58 65
E (mm) 5
 6
 6
 6.5
 6.5
 7
 8
 9
 10 10
L (mm) 25
 29
 30
 32.5
 34
 35
 38 42
 47 54
SIB TEC Ref. C5007105 C5009105
 C5011105
 C5013105
 C5016105
 C5021105
 C5029105
 C5036105
 C5042105 C5048105
