CW LSF Industrial Gland Kit
Description
CW LSF brass indoor & outdoor cable glands are suitable with all types of Single Wire Armour (SWA) cable to seal the cables outer sheath. Additionally, the cable gland provides mechanical cable retention and electrical continuity via the armour wire termination. A seperate removable armour cone and clamping ring allows the cable to be easily removed if required. CGUK's CW range of industrial cable glands is designed and tested to BS6121: Part 1: 1989.
CW Glands can be rated to IP65, providing a suitable sealing washer or thread sealant is used at the gland interface.
Kit Contents

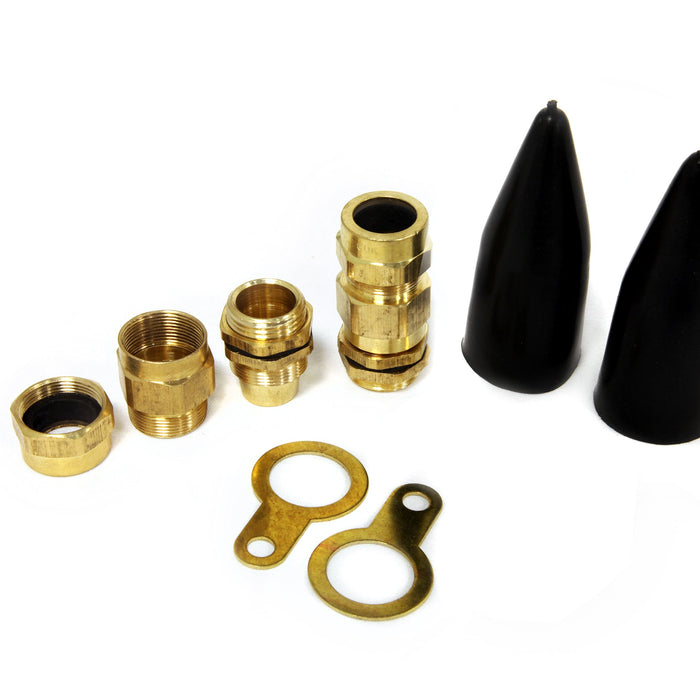

x2 Glands, x2 Locknuts, x2 Earth Tags & x2 LSF Shrouds up to and including 32mm, 40mm and upwards. Contains x1 of each item.
Directions for Use
Indoor / Outdoor Applications.
Material
Brass.
Colour
Brass.
Technical Data
| Type | CW |
|---|---|
| Design Specification | BS 6121 : Part I |
| Gland Material | Brass |
| Ingress Protection | IP 65 |
| Finish | Plain Brass or Nickel Plated |
| Seal Material | Thermoplastic Elastomer |
| Cable Type | Steel Wire Armour |
| Armour Clamping | 3 Part Armour Lock |
| Sealing Technique | Compression Type |
| Sealing Area | Outer Sheath |
| Operating Temp. | -40 - 80°C |
Size Chart
| Gland Size | 20S | 20 | 25 | 32 | 40 | 50 | 63 | 75 |
|---|---|---|---|---|---|---|---|---|
| No. per Pack | x2 | x2 | x2 | x2 | x1 | x1 | x1 | x1 |
| Cable Range (mm) | 8.0 - 15.8 | 11.7 - 20.8 | 17.0 - 27.2 | 23.5 - 33.5 | 29.0 - 39.9 | 39.5 - 52.6 | 51.3 - 65.3 | 62.5 - 78.0 |
| Entry Thread - D (mm) | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M32 x 1.5 | M40 x 1.5 | M50 x 1.5 | M63 x 1.5 | M75 x 1.5 |
| Entry Thread - E (mm) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Under Armour ⌀ - A (mm) | 11.6 | 13.9 | 19.9 | 26.2 | 32.1 | 44.0 | 55.9 | 67.9 |
| Armour ⌀ (mm) | 0.9 | 0.9/1.25 | 1.25/1.6 | 1.6/2.0 | 1.6/2.0 | 2.0/2.5 | 2.0/2.5 | 2.5/3.0 |
|
Approx. Length from Shoulder - F (mm) |
46 | 46 |
51 |
56 |
59 |
64 |
67 |
76 |
| Hexagon Across Flats - G (mm) | 25.7 | 30.5 |
37.6 | 47.3 | 56.4 | 70.1 | 80.0 | 98.8 |
| Hexagon Across Corners - H (mm) | 29.2 | 34.0 |
42.2 | 53.6 | 61.5 |
77.2 | 87.4 | 109.2 |
