Nickel-plated brass roundtop cable gland with metric threading, offering excellent strain relief and wide clamping range for unarmoured cables in industrial applications.

Nickel Plated Roundtop Glands (Metric)

by SIB TEC France
£1.51 - £25.86
£1.66
£1.51 - £25.86
£1.66

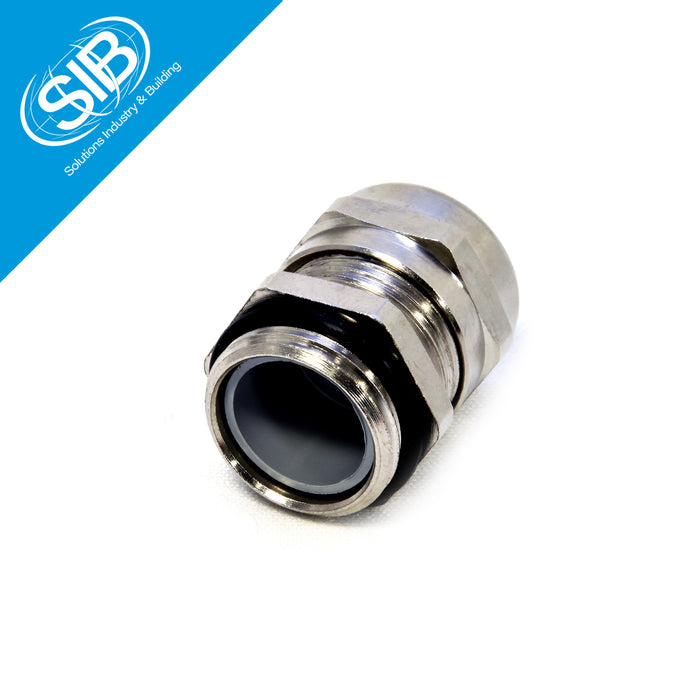

SIB TEC Nickel Plated Roundtop Gland

The SIB TEC Nickel Plated Roundtop Gland is a precision-engineered cable gland designed specifically for normal industrial use. Its polished nickel-plated brass body, neoprene O-ring seal and clamp-lamella construction deliver top-tier protection against dust, water ingress (IP68) and surface damage, making it ideal for harsh factory and outdoor applications.

Key Features

  • Material & Finish: Nickel-plated brass with a durable neoprene collar and clamp lamella to avoid surface damage.
  • Temperature Range: Operates reliably from –40 °C to +100 °C.
  • Cable Range: Sizes M12 to M63 cover diameters from 2.5 mm to 48 mm.
  • Ingress Protection: IP68 rated for continuous immersion.
  • Normal Industrial Applications: Engineered for wiring in machinery, enclosures and panels.
  • Stock Availability: All sizes held in stock for immediate dispatch.
  • Ex e & ECDEP Options: Available as Ex e certified and ECDEP compatible variants at additional cost.

Technical Data

Parameter Specification
Thread Type Metric (M12–M63)
Cable Diameter Range (mm)
  • M12: 2.5–6.5
  • M16: 4.0–9.5
  • M20: 7.0–13.0
  • M25: 8.0–16.0
  • M32: 11.0–21.0
  • M40: 15.0–27.0
  • M50: 22.0–35.0
  • M63: 35.0–48.0
Ingress Protection IP68
Operating Temperature Range –40 °C to +100 °C
Body Material Nickel-plated brass
Seal Type Neoprene O-ring displacement seal
Pack Quantity 1 unit (locknut sold separately)

Applications & Suitability

Perfectly suitable for a broad range of indoor and outdoor industrial applications, these glands incorporate a robust collar and locknuts to maintain cable integrity under vibration, moisture and dust.




Size Chart

Gland Size 12
 16
 20 25
 32
 40
 50
 63
No. per Pack x1 x1 x1 x1 x1 x1 x1 x1
Cable Range (mm) 2.5 - 6.5 4.0 - 9.5 7.0 - 13.0 8.0 - 16.0 11.0 - 21.0 15.0 - 27.0 22.0 - 35.0 35.0 - 48.0
Entry Thread (mm) M12 x 1.5 M16 x 1.5 M20 x 1.5 M25 x 1.5 M32 x 1.5 M40 x 1.5 M50 x 1.5 M63 x 1.5
H (mm) 14 17 22
 27
 34
 42
 55 65
E (mm) 5
 5
 6
 7
 8
 8
 9
 10
L (mm) 25
 28
 32
 35
 38
 41
 46
 54
SIB TEC Ref. C5212000 C5216000
 C5220000
 C5225000
 C5232000
 C5240000
 C5250000
 C5263000
