32mm Nylon Tail Kit Consumer Unit Gland
by CGUK
Original price
£1.74
-
Original price
£2.00
Original price
£1.74
£1.74
-
£2.00
Current price
£1.74
Description

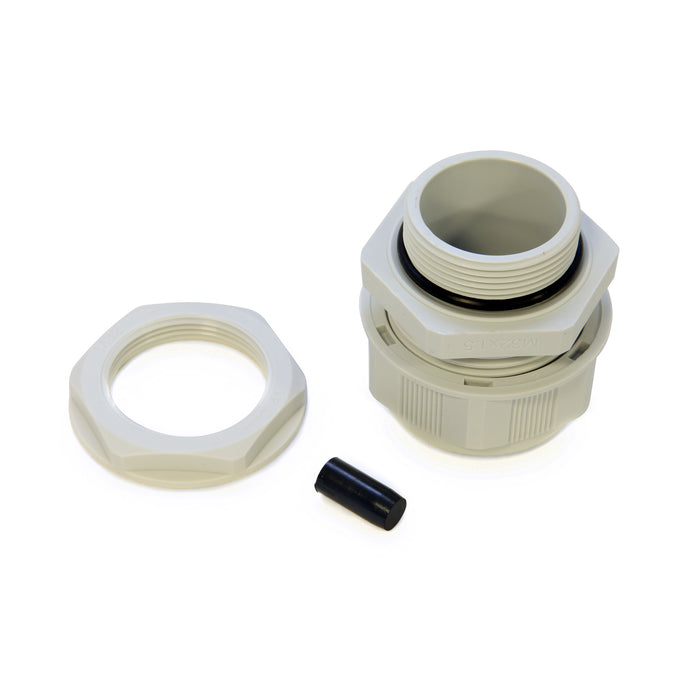

Nylon tail gland kit for incoming cables on a metal (Amendment 3) consumer units. Each 32mm stuffing gland incorporates a specialist grommet for (2 x 16mm² & 1 x 10mm²) or (2 x 25 & 1 x16mm) meter tails. A blanking insert is also supplied if used without an earth wire. IP68 rated and CE approved.
Kit Contents
x1 Gland & x1 Locknut per pack.
Directions for Use
Indoor / Outdoor Applications.
Material
Polyamide 6 V2 UL94 Zero Halogen.
Colour
Grey (RAL 7035).
Technical Data
| Type | Polyamide Consumer Unit Gland |
|---|---|
| Design Specification | EN62444:2013 | IEC 62444:2010 | DTS01 Deluge |
| Gland Material | Polyamide |
| Ingress Protection | IP68 | EN60529:1992 (Inc No.1 & No.2) |
| Operating Temp. | -20°C - 100°C |
| Finish | Plastic |
| Seal Material | TPV |
| Cable Type | Unarmoured |
| Sealing Technique | Compression Type |
| Sealing Area | Outer Sheath |
Size Chart
| Gland Size | M32 | M32 |
|---|---|---|
| Cable Range (mm) | 2x16 & 1x10 | 2x25 & 1x16 |
| Entry Thread (mm) | M32 x 1.5 | M32 x 1.5 |
| Thread Length (mm) | 10 | 10 |
| External ⌀ (mm) | 41.7 | 41.7 |
| Length (mm) | 50.0 | 50.0 |
