A2 Industrial Gland Kit (Prysmian)
by Prysmian
POA - Find Out More
Description

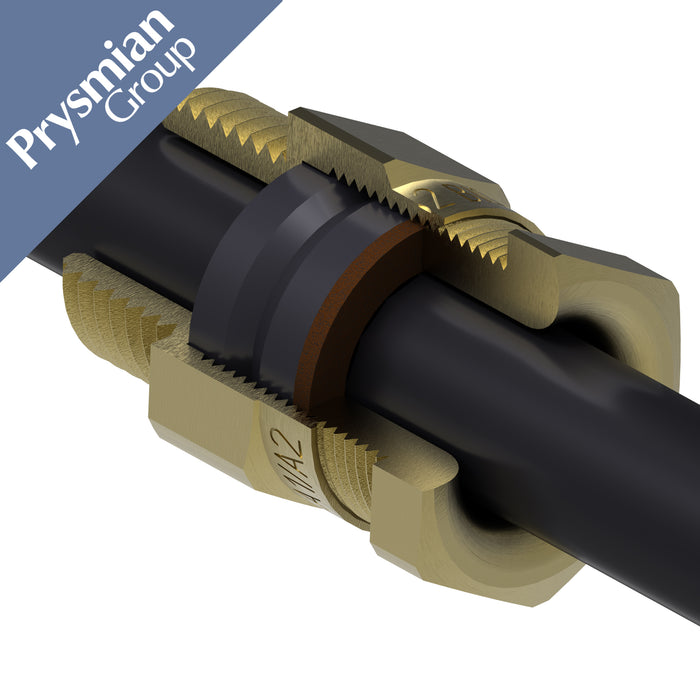

Prysmian Bicon A2 Brass Cable Gland Kits are industrial cable glands used to terminate circular, unarmoured plastic or rubber sheathed cables in most climatic conditions. The A2 brass cable gland kits are weatherproof and waterproof and suitable for indoor and outdoor use.
Kit Contents
A1/A2 Gland Brass Locknut PVC Shroud.
(x2 per kit up to and including 25mm size).
Directions for Use
Indoor / Outdoor Applications.
Material
Brass or Aluminium
Colour
Brass or Silver Metal
Technical Data
| Type | A2 |
|---|---|
| Design Specification | BS 6121 : Part I : 1989, IEC 624444, EN62444 |
| Gland Material | Brass |
| Ingress Protection | IP 66 |
| Finish | Plain Brass or Nickel Plated |
| Seal Material | Thermoplastic Elastomer |
| Cable Type | Unarmoured |
| Sealing Technique | Displacement Type |
| Sealing Area | Outer Sheath |
Size Chart
| Gland Size | 16 | 20S | 20 | 25 | 32 | 40 | 50 | 63 | 75 |
|---|---|---|---|---|---|---|---|---|---|
| Prysmian Part No. | KM409-51 | KM409-52 | KM409-53 | KM409-55 | KM409-56 | KM409-57 | KM409-59 | KM409-61 | KM409-63 |
| No. per Pack | x2 | x2 | x2 | x2 | x1 | x1 | x1 | x1 | x1 |
| Cable Range (mm) | 3.5 - 8.5 | 8.0 - 11.5 | 11.0 - 13.5 | 13.0 - 19.5 | 19.0 - 25.5 | 25.0 - 32.0 | 36.5 - 43.0 | 49.5 - 55.0 | 60.5 - 67.0 |
| Entry Thread - D (mm) | M16 x 1.5 | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M32 x 1.5 | M40 x 1.5 | M50 x 1.5 | M63 x 1.5 | M75 x 1.5 |
| Entry Thread - E (mm) | 10 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Under Armour ⌀ - A (mm) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Armour ⌀ (mm) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Approx. Length from Shoulder - F (mm) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Hexagon Across Flats - G (mm) | 19.0 | 22.0 | 24.0 | 30.5 | 42.4 |
47.2 |
56.4 |
75.0 |
85.0 |
| Hexagon Across Corners - H (mm) |
21.5 |
24.9 |
27.0 |
34.0 |
48.0 |
53.6 | 61.5 | 83.0 | 95.0 |
