Automotive Conduit Glands

Original price £7.44 - Original price £56.28
Original price
£7.44
£7.44 - £56.28
Current price £7.44

Description
Sem-Fast straight glands for automotive conduit with "normal" and "UFW" profiles. Conical sealing on corrugated tube. Thread sealing by sealing bars. Special click in system. Easy and tight assembly, insert tube in the closed gland. Tube is turnable within the gland. High tensile strength. Free of halogen. Suitable for engineering, Ship and train building, Vehicle industries and switch cabinets.

Material
Polyamide 6.

Colour
Black.

Technical Data
Type Sem-Fast Straight Gland
Thread Size Metric & PG Thread Available
Construction N/A
Max. Operating Temp. 120°C
Min. Operating Temp. -40°C
IP Rating

IP65 - IP68**


** To acheive the protection class IP68, you will need the purchase the seperate "O" ring. Slip the "O" ring into the first groove of the cut end of the corrugated tube section on the screw side. For normal profiled size NW50 slip 2 "O" rings into the first and second groove of the tube.

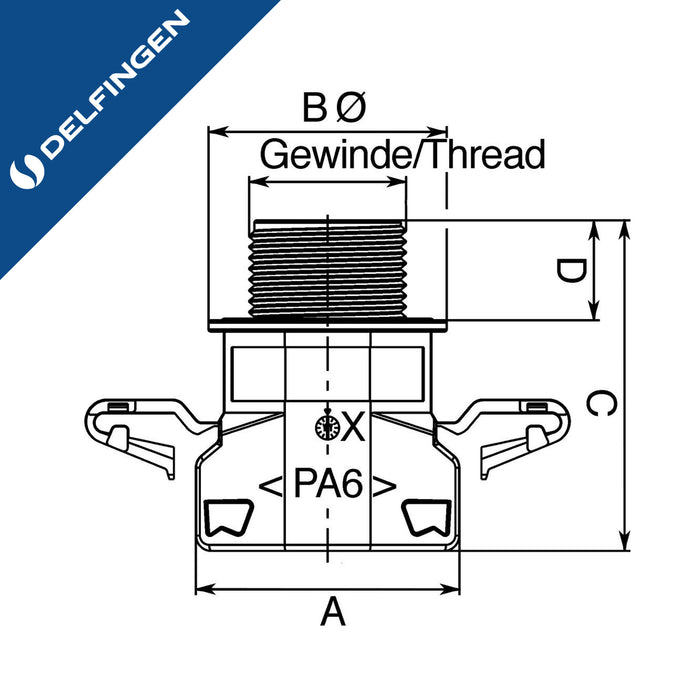

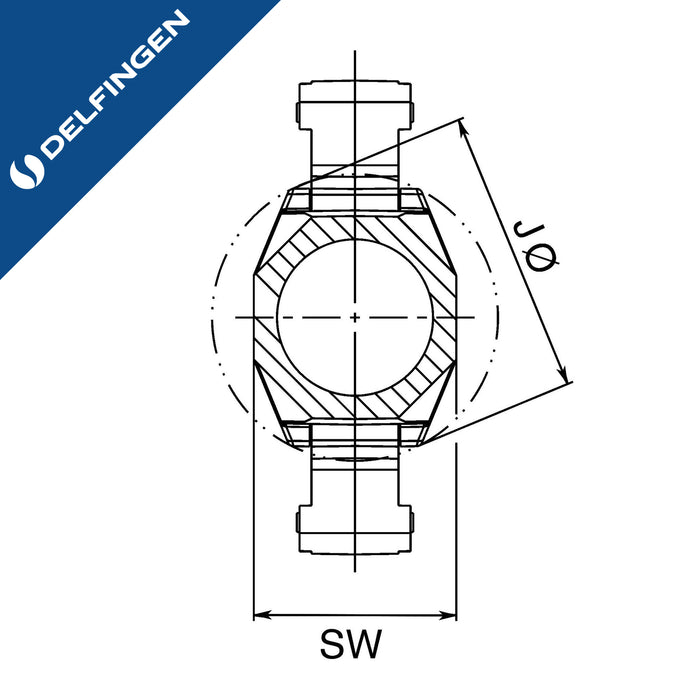

Size Chart
Product Ref. Pack Size External Thread For Profile NW Overall Length (mm) Thread Length (mm)
3805047 x10 M12x1.5
7.5 34 11
3805011 x10 M12x1.5 8.5 35 11
3805000 x10 M12x1.5 10 36 12
3805001 x10 M16x1.5 10 36 12
3805007 x10 M16x1.5 12+13 38 12
3805008 x10 M20x1.5 12+13 38 12
3805002 x10 M20x1.5 17 43 13
3805003 x10 M25x1.5 17 43 13
3805022 x10 M25x1.5 22 48 13
3805013 x10 M25x1.5 23 48 13
3805015 x10 M32x1.5 29 52 15
3805017 x10 M40x1.5 37 62 17
3805019 x10 M50x1.5 50 68 19
3805012 x10 PG7 8.5 35 11
3805024 x10 PG7 10 36 12
3805006 x10 PG16 17 43 13
