CMP CW Industrial Cable Gland
Reliable CW Outdoor Cable Glands for SWA Cable
Enhance the integrity and longevity of your steel wire armour (SWA) cable installations with our CMP CW Industrial Cable Gland range. Designed to meet the highest industry standards, these CW outdoor cable glands deliver exceptional durability, weather resistance, and secure metal-to-metal armour clamping. Ideal for a wide range of industrial applications, the CW gland series ensures dependable sealing, optimal performance, and straightforward installation, even in the most demanding environments.
Key Features & Benefits
- High-Quality Durable Materials: Manufactured from premium brass
- Robust, Heavy-Duty Design: Engineered to withstand tough industrial conditions, ensuring reliability and safety.
- Metal-to-Metal Armour Clamping: Provides secure cable retention and protection against mechanical stress.
- Versatile Installation Options: Suitable for direct or remote installations, making it easier to customise setups.
- Controlled Outer ‘Load Retention’ Seal (LRS): Prevents over-tightening and maintains a safe, consistent seal.
- Temperature Range: Standard operation from -60°C to +130°C
- Comprehensive Kits Available: Complete gland kits include locknuts, earth tags, and PVC shrouds for simplified installation.
Applications
These CW Industrial Cable Glands are perfect for use with all SWA cable types across various sectors, including:
- Oil & Gas
- Marine & Offshore
- Petrochemical & Chemical Processing
- Energy, Utilities & Power Distribution
- General Industrial Installations
Available Sizes
We offer a wide range of sizes for CMP's CW outdoor cable glands. Rather than displaying each size on a separate page, you can easily select the required option from the dropdown menu above. Simply choose the appropriate cable gland size for your SWA cable application and add it to your basket.
Buy Your CMP CW Industrial Cable Gland Today
Invest in quality, reliability, and performance. Browse our selection of CMP CW Cable Glands and experience the difference in durability and efficiency. For additional support, queries, or bespoke requirements, please contact our team of specialists.
Technical Data
Technical Specifications
| Design Specification | BS 6121: Part 1:1989, IEC 62444, EN 62444 |
|---|---|
| Mechanical Classifications * | Impact = Level 8, Retention = Class D |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| Electrical Classifications * | Category B |
| GOST R Certificate | POCC.GB.HA46.H00140 |
| Marine Approvals | LRS: 01/00171 (E1), ABS: 16-LD1472056-PDA |
| Ingress Protection Rating ** | IP66 as standard (IP67, IP68 available upon request) |
| Cable Gland Material | Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium |
| Seal Material | CMP Thermoset Rubber |
| Cable Type | Single Wire Armour (SWA) |
| Armour Clamping | Detachable Armour Cone & AnyWay Universal Clamping Ring |
| Sealing Technique | Unique CMP ‘LRS’ Outer Seal (Load Retention Seal) |
| Sealing Area(s) | Cable Outer Sheath |
| Cable Gland Kits Available | Includes 2 Brass Cable Glands, 2 Steel Locknuts, 2 Brass Earth Tags, and 2 PVC Shrouds (up to 32mm). For 40mm and above, each kit includes 1 of each component. |
*Please consult technical documentation or contact our team for detailed mechanical and electrical classification data.
**For specialised requirements such as deluge protection, IP67/IP68 ingress ratings, or EMC testing, please get in touch.

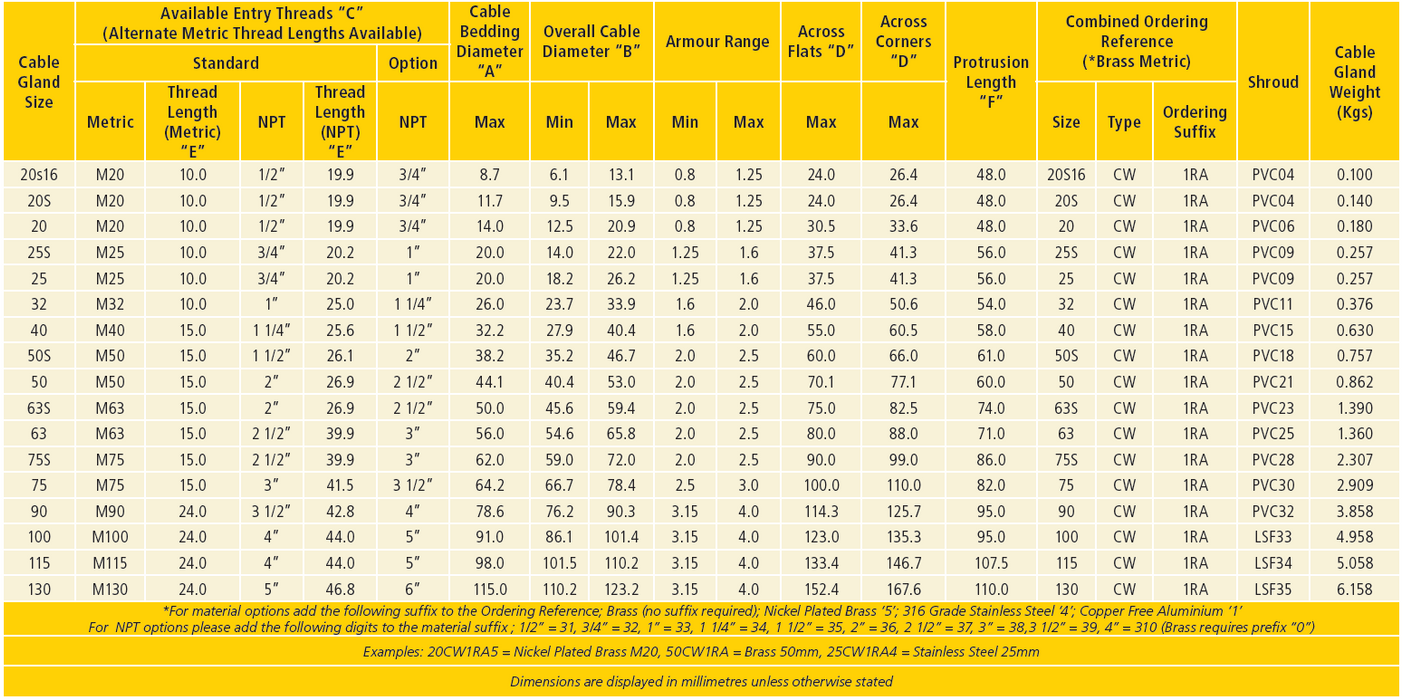

Datasheet & Size Chart
To view all technical details & Size Chart of CMP's CW Industrial Cable Gland, please download the technical datasheet below:
