SIB TEC Polyamide Compression Gland (Metric)
POA - Find Out More
Description

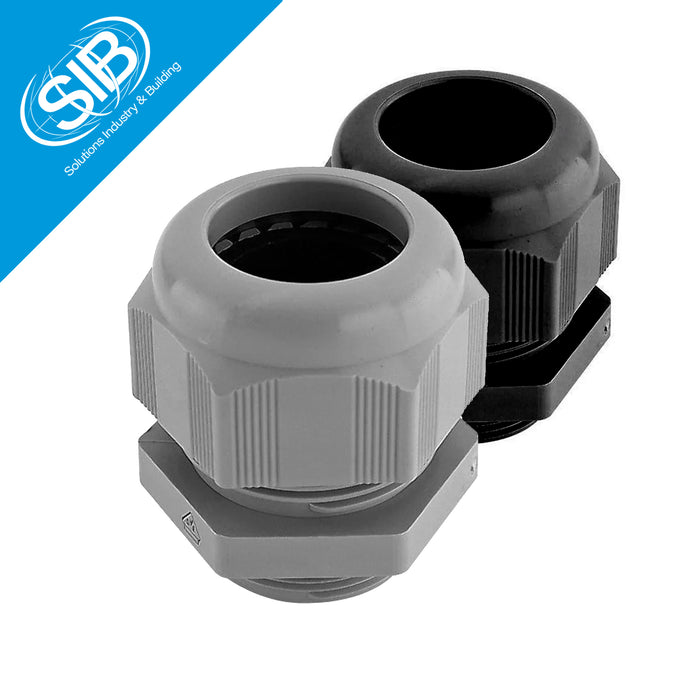

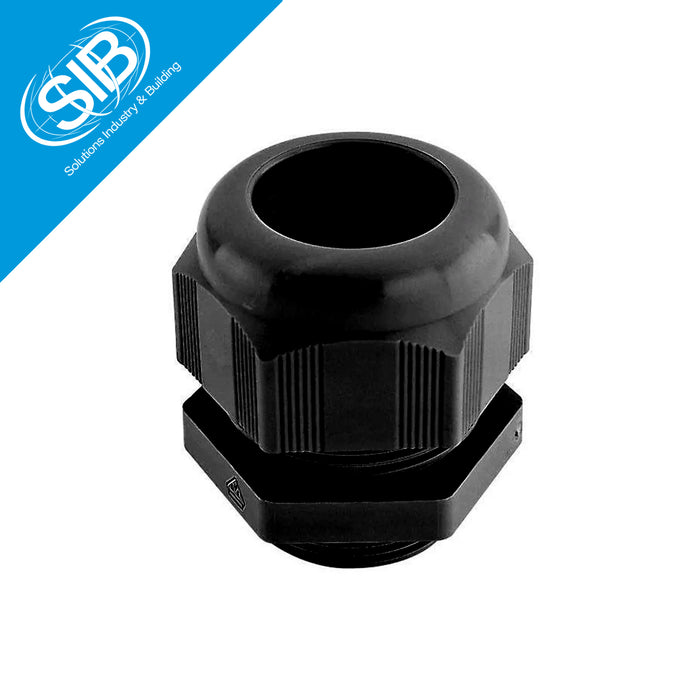

SIB-TEC Metric Plastic Cable Glands, are made from high-quality Polyamide, fitted with neoprene O-ring seals, which provide an IP68 protection index.
Kit Contents
x1 Gland (Locknut sold separately).
Directions for Use
Indoor / Outdoor Applications.
Material
Polyamide 6 V2 UL94 Zero Halogen.
Colour
Grey (RAL 7035) & Black (RAL 9005).
RAL 7001 available upon request.
Technical Data
| Type | Polyamide Dometop Gland |
|---|---|
| Design Specification | EN62444:2013 | IEC 62444:2010 | DTS01 Deluge |
| Gland Material | Polyamide |
| Ingress Protection | IP68 | EN60529:1992 (Inc No.1 & No.2) |
| Operating Temp. | -40°C - 100°C |
| Finish | Plastic |
| Seal Material | Neoprene |
| Cable Type | Unarmoured |
| Sealing Technique | Compression Type |
| Sealing Area | Outer Sheath |
Size Chart
| Gland Size | M12 | M16 | M16 | M20 | M20 | M25 | M25 | M32 | M40 | M50 | M63 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIB TEC Part No. (Grey) |
F7021200 | F7021650 | F7021600 | F7022050 | F7022000 | F7022550 | F7022500 | F7023200 | F7024000 | F7025000 | F7026300 |
| SIB TEC Part No. (Black) |
F8021200 | F8021650 | F8021600 | F8022050 | F8022000 | F8022550 | F8022500 | F8023200 | F8024000 | F8025000 | F8026300 |
| Cable Range (mm) | 2.5 - 6.5 | 2.5 - 8.0 | 3.5 - 10.0 | 7.0-12.0 | 8.0 - 14.0 | 8.0 - 14.0 | 9.0 - 18.0 | 14.0 - 25.0 | 18.0 - 32.0 | 24.0 - 38.5 | 35.0 - 48.0 |
| Entry Thread (mm) | M12 x 1.5 | M16 x 1.5 | M16 x 1.5 | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M25 x 1.5 | M20 x 1.5 | M20 x 1.5 | M25 x 1.5 | M25 x 1.5 |
| Thread Length (mm) | 8 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 |
| External ⌀ (mm) | 15.0 | 19.0 | 22.0 | 24.0 | 27.0 | 37.0 | 33.0 | 42.0 | 53.0 | 60.0 | 70.0 |
| Length (mm) | 32.0 | 37.0 | 39.0 | 40.0 | 43.0 | 45.0 | 49.0 | 52.0 | 62.0 | 67.0 | 68.0 |
